During the past days I have been busy deploying the Internet Explorer Site Discovery Toolkit to our Internet Explorer 11 test clients. I will write about the deployment of the Toolkit in a separate post. Today I would like to share with you a PowerShell script I put together that allows you to retrieve the collected Internet Explorer Telemetry data from local or remote computers.
Internet Explorer Telemetry data is stored into the following WMI Classes
Namespace | Class |
root/cimv2/ietelemetry | IESystemInfo |
root/cimv2/ietelemetry | IECountInfo |
root/cimv2/ietelemetry | IEURLInfo |

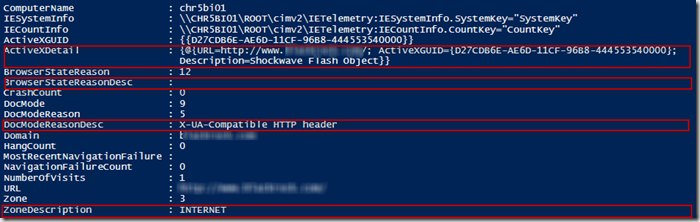

When running the Get-IETelemetryURLInfo command against a target machine, the script retrieves all information from the above listed WMI Classes. To make reading the results a bit more comprehensive I have extended the information that is returned by the script.
ActiveXDetail
The ActiveXDetail property holds additional information about the detected ActiveX object. By default only the ActiveXGUID is stored within the ActiveXGUID property. The script loops through each stored ActiveXGUID and searches for a match in the $ActiveXlist that is included in the script and provides a descriptive name.
BrowserStateDesc
The BroswerStateDesc property translates the BroswerStateReason property Code.
0 | Unitialized; |
1 | IntranetsitesinCompatibilityViewchecked; |
2 | SiteisonGroupPolicyCVlist; |
3 | AddedtotheCVlistbytheuser; |
4 | X-UA-Compatibleappliedtopage; |
5 | Setbythedevelopertoolbar; |
6 | FEATURE_BROWSER_EMULATIONfck; |
7 | SiteonMSCVlist; |
8 | SiteonQuirksGroupPolicylist; |
10 | WebPlatformversionsupplied; |
11 | BrowserDefault; |
DocModeReasonDesc
The DocModeReasonDesc property translates the DocModeReason property code.
0 | Uninitialized |
1 | MSHTMPADtracetagsforDRTs |
2 | Sessiondocumentmodesupplied |
3 | FEATURE_DOCUMENT_COMPATIBLE_MODEfck |
4 | X-UA-Compatiblemetatag |
5 | X-UA-CompatibleHTTPheader |
6 | CVList-imposedmode |
7 | NativeXMLParsingMode |
8 | ToplevelQMEFCKwasset,andmodewasdeterminedbyit |
9 | Documentmodeistheresultofthepage’sdoctypeandthebrowsermode |
10 | modesuppliedasahint(notsetbyarule) |
11 | We’vebeenconstrainedtoafamilycanonlyhaveasinglemode(notsetbyarule) |
12 | Webplatformversionsupplied;thereforealigndocmodetowebplatformversion |
13 | Toplevelimagefileisset,andmodewasdeterminedbyit |
14 | Feedviewermodedeterminesdocmode |
ZoneDescription
The ZoneDescription property translates the Zone property code:
-1 | Invalid |
0 | Local Machine |
1 | Intranet |
2 | Trusted |
3 | Internet |
4 | Untrusted |
The ActiveX switch

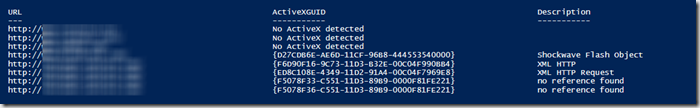

When launching the script with the optional -ActiveX switch, the script returns detailed information about the identified ActiveX components.
Following is the full script. You can download this script from the Script Center Repository Retrieve Internet Explorer Telemetry Information (Get-IETelemetryInfo)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 |
<# .Synopsis The Get-IETelemetryURLInfo retrieves script retrieves the Internet Explorer Telemetry information from the specified computers .DESCRIPTION The Get-IETelemetryURLInfo retrieves script retrieves the Internet Explorer Telemetry information from the specified computers. The script also translates the ActiveX Guid when it's found in the ActiveX reference list. Furthermore the scrpt translates the DocMode Reason, the Browser Mode Reason and the Zone information. .PARAMETER Computername One or mutliple computer names .EXAMPLE Get-IETelemetryURLInfo -Computername Client01,Client02 ComputerName : chr5bi01 IESystemInfo : \\CHR5BI01\ROOT\cimv2\IETelemetry:IESystemInfo.SystemKey="SystemKey" IECountInfo : \\CHR5BI01\ROOT\cimv2\IETelemetry:IECountInfo.CountKey="CountKey" ActiveXGUID : ActiveXDetail : {@{URL=https://www.verboon.info/; ActiveXGUID=No ActiveX detected; Description=}} BrowserStateReason : 12 BrowserStateReasonDesc : CrashCount : 0 DocMode : 11 DocModeReason : 9 DocModeReasonDesc : Document mode is the result of the page's doctype and the browser mode Domain : verboon.info HangCount : 0 MostRecentNavigationFailure : NavigationFailureCount : 0 NumberOfVisits : 1 URL : https://www.verboon.info/ Zone : 3 ZoneDescription : INTERNET This command retrieves the Internet Explorer Telemetry data from the specified computers. .EXAMPLE Get-IETelemetryURLInfo -ComputerName chr5bi01 -ActiveX URL ActiveXGUID Description --- ----------- ----------- http://www.foosample1.com/ No ActiveX detected https://www.verboon.info/ No ActiveX detected http://www.foosample2.com/ No ActiveX detected http://www.foosample3.com/ {D27CDB6E-AE6D-11CF-96B8-444553540000} Shockwave Flash Object http://intranet.foocorp.com/ {F6D90F16-9C73-11D3-B32E-00C04F990BB4} XML HTTP http://intranet.foocorp.com/ {ED8C108E-4349-11D2-91A4-00C04F7969E8} XML HTTP Request This command returns URL and ActiveX information. When the ActiveX GUID is found in the ActiveX reference list defined within the script the name is displayed in the Description. .NOTES To use this script clients must be configured to collect Internet Explorer usage data as described in the articles referenced below. http://technet.microsoft.com/en-us/library/dn833204.aspx http://blogs.msdn.com/b/ie/archive/2014/10/30/making-it-easier-for-enterprises-to-stay-up-to-date.aspx version 1.0 29-NOV-2014, Alex Verboon #> function Get-IETelemetryURLInfo { [CmdletBinding()] Param ( # [Parameter(Mandatory=$true,ValueFromPipelineByPropertyName=$true,Position=0)] [string[]]$ComputerName, [switch]$ActiveX ) Begin { # Collection of known ActiveX $activexlist = @{ "{47833539-D0C5-4125-9FA8-0819E2EAAC93}" = "Adobe Acrobat Create PDF Toolbar" #"{47833539-D0C5-4125-9FA8-0819E2EAAC93}" = "Adobe PDF" "{28BCCB9A-E66B-463C-82A4-09F320DE94D7}" = "F12 Developer Tools" #"{28BCCB9A-E66B-463C-82A4-09F320DE94D7}" = "F12 Developer Tools" "{AE7CD045-E861-484f-8273-0445EE161910}" = "Adobe Acrobat Create PDF Helper" #"{AE7CD045-E861-484f-8273-0445EE161910}" = "Adobe PDF Conversion Toolbar Helper" "{B4F3A835-0E21-4959-BA22-42B3008E02FF}" = "Office Document Cache Handler" "{D0498E0A-45B7-42AE-A9AA-ABA463DBD3BF}" = "Microsoft SkyDrive Pro Browser Helper" "{F4971EE7-DAA0-4053-9964-665D8EE6A077}" = "Adobe Acrobat Create PDF from Selection" #"{F4971EE7-DAA0-4053-9964-665D8EE6A077}" = "SmartSelect Class" "{48E73304-E1D6-4330-914C-F5F514E3486C}" = "Send to OneNote" "{31D09BA0-12F5-4CCE-BE8A-2923E76605DA}" = "Lync Click to Call" #"{31D09BA0-12F5-4CCE-BE8A-2923E76605DA}" = "Lync add-on" #"{31D09BA0-12F5-4CCE-BE8A-2923E76605DA}" = "Lync Browser Helper" "{FFFDC614-B694-4AE6-AB38-5D6374584B52}" = "OneNote Linked Notes" "{10336656-40D7-4530-BCC0-86CD3D77D25F}" = "MeetingJoinHelper Class" "{1542FC7D-8D51-43D5-B757-67C763F27BF4}" = "Microsoft Lync Web App Version Plug-in (64-bit)" "{25336920-03F9-11CF-8FD0-00AA00686F13}" = "HTML Document" "{2933BF90-7B36-11D2-B20E-00C04F983E60}" = "XML DOM Document" "{4FCEE402-10E9-4446-AE0F-AE48D6D62E9A}" = "Groove Site Client ActiveX" "{52A2AAAE-085D-4187-97EA-8C30DB990436}" = "HHCtrl Object" #"{52A2AAAE-085D-4187-97EA-8C30DB990436}" = "HHCtrl Object" "{6BF52A52-394A-11D3-B153-00C04F79FAA6}" = "Windows Media Player" "{7ECF6F97-B4F3-4168-9835-F59C06D7875F}" = "Microsoft Lync Web App Plug-in (64-bit)" "{8075831E-5146-11D5-A672-00B0D022E945}" = "SharepointOpenXMLDocuments" "{8856F961-340A-11D0-A96B-00C04FD705A2}" = "Microsoft Web Browser" "{96CAE7ED-F021-4FEB-A5E9-7CC58829A67A}" = "Microsoft Lync Web App Plug-in (64-bit)" "{971127BB-259F-48C2-BD75-5F97A3331551}" = "Microsoft RDP Client Control (redistributable) - version 3a" #"{971127BB-259F-48c2-BD75-5F97A3331551}" = "Microsoft RDP Client Control (redistributable) - version 3a" "{D27CDB6E-AE6D-11CF-96B8-444553540000}" = "Shockwave Flash Object" "{DFEAF541-F3E1-4C24-ACAC-99C30715084A}" = "Microsoft Silverlight" #"{DFEAF541-F3E1-4c24-ACAC-99C30715084A}" = "Microsoft Silverlight" "{ED8C108E-4349-11D2-91A4-00C04F7969E8}" = "XML HTTP Request" "{EE09B103-97E0-11CF-978F-00A02463E06F}" = "Scripting.Dictionary" "{F5078F32-C551-11D3-89B9-0000F81FE221}" = "XML DOM Document 3.0" "{F6D90F11-9C73-11D3-B32E-00C04F990BB4}" = "XML DOM Document" "{F6D90F16-9C73-11D3-B32E-00C04F990BB4}" = "XML HTTP" "{54CE37E0-9834-41ae-9896-4DAB69DC022B}" = "Microsoft RDP Client Control (redistributable) - version 5a" "{6A6F4B83-45C5-4ca9-BDD9-0D81C12295E4}" = "Microsoft RDP Client Control (redistributable) - version 4a" "{41B23C28-488E-4E5C-ACE2-BB0BBABE99E8}" = "HHCtrl Object" "{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 10.21.2" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_16" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 10.55.2" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_45" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 10.40.2" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_43" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_24" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.5.0_14" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.5.0_22" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 10.0.0" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_21" #"{8AD9C840-044E-11D1-B3E9-00805F499D93}" = "Java Plug-in 1.6.0_37" "{8D9563A9-8D5F-459B-87F2-BA842255CB9A}" = "Forefront UAG client components" "{CAFEEFAC-0016-0000-0045-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_45" "{CAFEEFAC-0017-0000-0021-ABCDEFFEDCBA}" = "Java Plug-in 1.7.0_21" "{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.7.0_21" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_16" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 10.55.2" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_45" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 10.40.2" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_43" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_24" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.5.0_14" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.5.0_22" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.7.0" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_31" #"{CAFEEFAC-FFFF-FFFF-FFFF-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_37" "{FCADE536-93F5-4577-80A3-E7C32FAC4C7D}" = "Loader Class v5" "{761497BB-D6F0-462C-B6EB-D4DAF1D92D43}" = "Java(tm) Plug-In SSV Helper" #"{761497BB-D6F0-462C-B6EB-D4DAF1D92D43}" = "SSVHelper Class" "{DBC80044-A445-435b-BC74-9C25C1C588A9}" = "Java(tm) Plug-In 2 SSV Helper" "{07B06095-5687-4D13-9E32-12B4259C9813}" = "STSUpld.UploadCtl" "{18DF081C-E8AD-4283-A596-FA578C2EBDC3}" = "Adobe PDF Link Helper" #"{18DF081C-E8AD-4283-A596-FA578C2EBDC3}" = "Adobe PDF Link Helper" "{1CC6F158-C938-424B-A757-8DC337545084}" = "Microsoft Lync Web App Plug-in" "{233C1507-6A77-46A4-9443-F871F945D258}" = "Shockwave ActiveX Control" #"{233C1507-6A77-46A4-9443-F871F945D258}" = "Shockwave ActiveX Control" "{3605B612-C3CF-4AB4-A426-2D853391DB2E}" = "Certificates Class" #"{3605B612-C3CF-4ab4-A426-2D853391DB2E}" = "Certificates Class" "{3640A335-73A6-424C-A6E8-B21DCCCABD0C}" = "Whale SSL Wrapper" "{40C37B6C-D273-41E2-8122-A338BBDB2528}" = "Microsoft Lync Web App Plug-in" "{424BE3CD-34AB-4F51-9C57-4341166DC8FA}" = "UCOfficeIntegration Class" #"{424BE3CD-34AB-4F51-9C57-4341166DC8FA}" = "(no CLSID name)" "{53C06A7B-FC1E-40E6-9668-31CD219BAEA7}" = "Microsoft Lync Web App Version Plug-in" "{611B6CB4-ACE6-4655-8D60-15FAC4AD0952}" = "Gatekeeper Class" "{62B4D041-4667-40B6-BB50-4BC0A5043A73}" = "SharePoint Export Database Launcher" "{656E5CEE-3585-4C95-AD65-037CB12288F6}" = "Forefront UAG endpoint detection" "{65BCBEE4-7728-41A0-97BE-14E1CAE36AAE}" = "Microsoft Office List 15.0" "{8AC780E1-BCDB-4816-A6EA-A88BCC064453}" = "LyncForwarder Class" "{9203C2CB-1DC1-482D-967E-597AFF270F0D}" = "SharePoint OpenDocuments Class" "{9ED13477-E909-45BC-BADC-2106D04D6BD7}" = "SharePoint DragUpload Control" "{A0651028-BA7A-4D71-877F-12E0175A5806}" = "UCOfficeIntegration Class" "{A99E6846-B0A9-4E5E-AED1-ACEA8CBEF92E}" = "Device Session Cleanup" "{BDEADEF5-C265-11D0-BCED-00A0C90AB50F}" = "SharePoint Stssync Handler" "{CA8A9780-280D-11CF-A24D-444553540000}" = "Adobe PDF Reader" "{E18FEC31-2EA1-49A2-A7A6-902DC0D1FF05}" = "NameCtrl Class" "{E7339A62-0E31-4A5E-BA3D-F2FEDFBF8BE5}" = "PersonalSite Class" "{00024522-0000-0000-C000-000000000046}" = "RefEdit.Ctrl" "{261B8CA9-3BAF-4BD0-B0C2-BF04286785C6}" = "Microsoft Outlook View Control" #"{261B8CA9-3BAF-4BD0-B0C2-BF04286785C6}" = "Microsoft Office Outlook View Control" "{3D8152C1-0CFD-4968-9684-794046886E31}" = "Microsoft Animation Control 6.0 (SP6)" "{9A948063-66C3-4F63-AB46-582EDAA35047}" = "Microsoft TabStrip Control 6.0 (SP6)" "{4D588145-A84B-4100-85D7-FD2EA1D19831}" = "Microsoft Date and Time Picker Control 6.0 (SP6)" "{F1651457-356D-4CA2-989D-701606A4C828}" = "Microsoft MonthView Control 6.0 (SP6)" "{F8CF7A98-2C45-4c8d-9151-2D716989DDAB}" = "Microsoft Visio Document" #"{F8CF7A98-2C45-4C8D-9151-2D716989DDAB}" = "Microsoft Visio Document" "{556C2772-F1AD-4DE1-8456-BD6E8F66113B}" = "Microsoft ImageList Control 6.0 (SP6)" "{A0E7BF67-8D30-4620-8825-7111714C7CAB}" = "Microsoft ProgressBar Control, version 6.0" "{CEDFFAFD-3C2F-4552-9FD3-3DC4299057FD}" = "Microsoft UpDown Control 6.0 (SP6)" "{585AA280-ED8B-46B2-93AE-132ECFA1DAFC}" = "Microsoft StatusBar Control 6.0 (SP6)" "{550C8FFB-4DC0-4756-828C-862E6D0AE74F}" = "Chain Class" "{8B2ADD10-33B7-4506-9569-0A1E1DBBEBAE}" = "Microsoft Toolbar Control 6.0 (SP6)" "{91D221C4-0CD4-461C-A728-01D509321556}" = "Store Class" "{95F0B3BE-E8AC-4995-9DCA-419849E06410}" = "Microsoft TreeView Control 6.0 (SP6)" "{CCDB0DF2-FD1A-4856-80BC-32929D8359B7}" = "Microsoft ListView Control 6.0 (SP6)" "{CAFEEFAC-DEC7-0000-0001-ABCDEFFEDCBA}" = "Deployment Toolkit" #"{CAFEEFAC-DEC7-0000-0001-ABCDEFFEDCBA}" = "Deployment Toolkit" "{87DACC48-F1C5-4AF3-84BA-A2A72C2AB959}" = "Microsoft ImageComboBox Control, version 6.0" "{9171C115-7DD9-46BA-B1E5-0ED50AFFC1B8}" = "Certificate Class" "{0B314611-2C19-4AB4-8513-A6EEA569D3C4}" = "Microsoft Slider Control, version 6.0" "{CFA7636D-CAA1-4F18-868F-8720624C8B86}" = "Microsoft Flat Scrollbar Control 6.0 (SP6)" "{3BCEAAF6-6774-4137-BC4E-BD8A2CD4CA95}" = "ALM Platform Loader v11.5x" "{6D53EC84-6AAE-4787-AEEE-F4628F01010C}" = "Symantec Intrusion Prevention" #"{6D53EC84-6AAE-4787-AEEE-F4628F01010C}" = "Symantec Vulnerability Protection" "{FF059E31-CC5A-4E2E-BF3B-96E929D65503}" = "Research" "{0468C085-CA5B-11D0-AF08-00609797F0E0}" = "Outlook Today's Data-binding control" #"{0468C085-CA5B-11D0-AF08-00609797F0E0}" = "(no CLSID name)" #"{0468C085-CA5B-11D0-AF08-00609797F0E0}" = "DataCtl Class" "{08B0E5C0-4FCB-11CF-AAA5-00401C608501}" = "(no CLSID name)" #"{08B0E5C0-4FCB-11CF-AAA5-00401C608501}" = "Web Browser Applet Control" "{88D96A0A-F192-11D4-A65F-0040963251E5}" = "XML HTTP 6.0" "{7466A304-ABF5-4998-88AE-F78D6F134E00}" = "ImexGridCtrl.2 Object" #"{7466A304-ABF5-4998-88AE-F78D6F134E00}" = "ImexGridCtrl.1 Object" "{444D2D27-02E8-486B-9018-3644958EF8A9}" = "FieldListCtrl.2 Object" #"{444D2D27-02E8-486B-9018-3644958EF8A9}" = "FieldListCtrl.1 Object" "{46857999-9b7c-4895-9d22-81a4a2478868}" = "Web Test Recorder 12.0" "{3050F819-98B5-11CF-BB82-00AA00BDCE0B}" = "HtmlDlgSafeHelper Class" "{432DD630-7E03-4C97-9D62-B99F52DF4FC2}" = "Microsoft Web Test Recorder 12.0 Helper" #"{432dd630-7e03-4c97-9d62-b99f52df4fc2}" = "Microsoft Web Test Recorder 12.0 Helper" "{02BCC737-B171-4746-94C9-0D8A0B2C0089}" = "Microsoft Office Template and Media Control" "{02BF25D5-8C17-4B23-BC80-D3488ABDDC6B}" = "QuickTime Plugin Control" #"{02BF25D5-8C17-4B23-BC80-D3488ABDDC6B}" = "QuickTime Object" "{036F8A56-0BC8-4607-8F98-D3231E6FF5ED}" = "CentraUpdaterAxCtl Class" "{17492023-C23A-453E-A040-C7C580BBF700}" = "Windows Genuine Advantage Validation Tool" "{82774781-8F4E-11D1-AB1C-0000F8773BF0}" = "DLC Class" "{CAFEEFAC-0016-0000-0016-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_16" "{E06E2E99-0AA1-11D4-ABA6-0060082AA75C}" = "GpcContainer Class" #"{E06E2E99-0AA1-11D4-ABA6-0060082AA75C}" = "(no CLSID name)" "{CF819DA3-9882-4944-ADF5-6EF17ECF3C6E}" = "Fiddler" "{22D6F312-B0F6-11D0-94AB-0080C74C7E95}" = "Windows Media Player" "{25336921-03F9-11CF-8FD0-00AA00686F13}" = "Microsoft HTML Document 6.0" "{2933BF94-7B36-11D2-B20E-00C04F983E60}" = "XSL Template" "{38481807-CA0E-42D2-BF39-B33AF135CC4D}" = "IETag Factory" "{39125640-8D80-11DC-A2FE-C5C455D89593}" = "Google Talk ActiveX Plugin" "{3FD37ABB-F90A-4DE5-AA38-179629E64C2F}" = "SharePoint Spreadsheet Launcher" "{4063BE15-3B08-470D-A0D5-B37161CFFD69}" = "QuickTime Plugin Control" #"{4063BE15-3B08-470D-A0D5-B37161CFFD69}" = "QuickTime Object" "{55136805-B2DE-11D1-B9F2-00A0C98BC547}" = "Shell Name Space" "{5852F5ED-8BF4-11D4-A245-0080C6F74284}" = "isInstalled Class" "{61E40D31-993D-4777-8FA0-19CA59B6D0BB}" = "Contact Selector" "{88D969E5-F192-11D4-A65F-0040963251E5}" = "XML DOM Document 5.0" "{88D969EA-F192-11D4-A65F-0040963251E5}" = "XML HTTP 5.0" "{88D96A05-F192-11D4-A65F-0040963251E5}" = "XML DOM Document 6.0" "{AB9F4455-E591-4132-A386-0B91EAEDB96C}" = "Google Talk Video Renderer" "{C3101A8B-0EE1-4612-BFE9-41FFC1A3C19D}" = "Google Update Plugin" "{C442AC41-9200-4770-8CC0-7CDB4F245C55}" = "Google Update Plugin" "{CD3AFA76-B84F-48F0-9393-7EDC34128127}" = "AUDIO__MP3 Moniker Class" "{CD3AFA99-B84F-48F0-9393-7EDC34128127}" = "VIDEO__MP4 Moniker Class" "{CFBFAE00-17A6-11D0-99CB-00C04FD64497}" = "Microsoft Url Search Hook" "{F5078F35-C551-11D3-89B9-0000F81FE221}" = "XML HTTP 3.0" "{F6D90F12-9C73-11D3-B32E-00C04F990BB4}" = "Free Threaded XML DOM Document" "{1A6FE369-F28C-4AD9-A3E6-2BCB50807CF1}" = "Developer Tools" #"{1A6FE369-F28C-4AD9-A3E6-2BCB50807CF1}" = "Developer Tools" "{72853161-30C5-4D22-B7F9-0BBC1D38A37E}" = "Groove GFS Browser Helper" "{7DB2D5A0-7241-4E79-B68D-6309F01C5231}" = "scriptproxy" "{88D96A06-F192-11D4-A65F-0040963251E5}" = "Free Threaded XML DOM Document 6.0" "{88D96A08-F192-11D4-A65F-0040963251E5}" = "XSL Template 6.0" "{AD17B774-7F87-4141-BB9C-2AEE3841DC4E}" = "Aspera Web" "{238F6F83-B8B4-11CF-8771-00A024541EE3}" = "Citrix ICA Client" "{531D5A4A-03D9-4404-AFF7-235A48E6B61E}" = "AwInstaller Class" "{88D969C0-F192-11D4-A65F-0040963251E5}" = "XML DOM Document 4.0" "{88D969C5-F192-11D4-A65F-0040963251E5}" = "XML HTTP 4.0" "{CB927D12-4FF7-4A9E-A169-56E4B8A75598}" = "Behavior Object" "{D9806E4E-82CE-4A75-83D0-A062EC605349}" = "AFContextMenuCtrl Class" "{DE4AF3B0-F4D4-11D3-B41A-0050DA2E6C21}" = "QuickTimeCheck Class" "{2BEC8FA8-1193-4A15-B8AF-C6DF6E6930C7}" = "Microsoft UpDown Control, version 5.0 (SP2)" "{E44F7BD4-3AB1-4D55-9190-FC53343AD2D2}" = "Microsoft TreeView Control, version 5.0 (SP2)" "{612685EF-57C8-469F-88AB-E4E0B595C5AB}" = "Microsoft ProgressBar Control, version 5.0 (SP2)" "{D8C1B55B-12DC-457F-97EC-4B84305FAA13}" = "Microsoft Hierarchical FlexGrid Control 6.0 (SP6) (OLEDB)" "{261399BF-4DBC-4731-B79F-EF8871D7CB36}" = "Microsoft Animation Control, version 5.0 (SP2)" "{1EAC2F2A-251F-4BA8-8617-99A8DD715453}" = "StdDataValue Object" "{2B577565-36F7-4351-B2E7-DAFC75E9D72A}" = "Microsoft Slider Control, version 5.0 (SP2)" "{894BA3A3-3CA3-402F-B4FE-CD08337E9535}" = "Microsoft Rich Textbox Control 6.0 (SP6)" "{79C784C5-8F0D-4A55-ADB3-590CCFC8EB0D}" = "Microsoft ListView Control, version 5.0 (SP2)" "{53749718-F78D-4A67-8703-8AE050075170}" = "Microsoft ImageList Control, version 5.0 (SP2)" "{97992019-74A6-46C7-9CA3-7F8C0D39940B}" = "Microsoft Toolbar Control, version 5.0 (SP2)" "{74DD2713-BA98-4D10-A16E-270BBEB9B555}" = "Microsoft FlexGrid Control, version 6.0 (SP6)" "{E8F8E80F-02EB-44CC-ABB5-6E5132BA6B24}" = "Microsoft StatusBar Control, version 5.0 (SP2)" "{7E96FC67-468E-4E70-B246-D42078DD2361}" = "StdDataFormat Object" "{D606EEC9-8368-4F10-88DB-BF5563EC36F6}" = "StdDataFormats Object" "{44E266A2-CD46-47A0-9ED5-EEEC5F0C2A6E}" = "Microsoft TabStrip Control, version 5.0 (SP2)" "{942085FD-8AEE-465F-ADD7-5E7AA28F8C14}" = "Microsoft Tabbed Dialog Control 6.0 (SP6)" "{225957BB-0005-48B9-8BFB-11AEE66779FB}" = "Microsoft DataGrid Control 6.0 (SP6) (OLEDB)" "{8F0F480A-4366-4737-8265-2AD6FDAC8C31}" = "Microsoft Common Dialog Control, version 6.0 (SP6)" "{8ABE89E2-1A1E-469B-8AF0-0A111727CFA5}" = "Gatekeeper Class" "{AA570693-00E2-4907-B6F1-60A1199B030C}" = "JuniperSetupClientControl64 Class" "{DF912424-425A-4F52-985D-1F83DA468AEB}" = "MeetingJoinHelper Class" "{773373E5-DD6A-40EB-9ED3-B16FB47F316A}" = "FileMgt.FileMgtCtrl" "{CAFEEFAC-0016-0000-0043-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_43" "{E5F5D008-DD2C-4D32-977D-1A0ADF03058B}" = "JuniperSetupControlXP Class" "{F27237D7-93C8-44C2-AC6E-D6057B9A918F}" = "JuniperSetupClientControl Class" "{64247C52-5C34-4597-B2A3-17BF5617F17F}" = "Taxonomy Control" "{901E885F-631B-42C8-982C-76884E5E21A0}" = "Contact Selector" "{CAFEEFAC-0016-0000-0024-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_24" "{8dcb7100-df86-4384-8842-8fa844297b3f}" = "Bing Bar" "{d2ce3e00-f94a-4740-988e-03dc2f38c34f}" = "Bing Bar Helper" "{5220CB21-C88D-11CF-B347-00AA00A28331}" = "Microsoft Licensed Class Manager 1.0" "{F9043C85-F6F2-101A-A3C9-08002B2F49FB}" = "Microsoft Common Dialog Control, version 6.0 (SP6)" "{CAFEEFAC-0015-0000-0014-ABCDEFFEDCBA}" = "Java Plug-in 1.5.0_14" "{CAFEEFAC-0015-0000-0014-ABCDEFFEDCBC}" = "Sun Java Console" "{CAFEEFAC-0015-0000-0022-ABCDEFFEDCBA}" = "Java Plug-in 1.5.0_22" "{CAFEEFAC-0015-0000-0022-ABCDEFFEDCBC}" = "Sun Java Console" "{CAFEEFAC-0017-0000-0000-ABCDEFFEDCBA}" = "Java Plug-in 1.7.0" "{2E5E4BAC-FEC7-4DD6-AFAF-F4139B1B9FB7}" = "LsiBrowserHook Class" "{95F35795-64B1-495D-9DE7-390EECC31EC0}" = "Microsoft Office Project Task Launch Control" "{CFC399AF-D876-11D0-9C10-00C04FC99C8E}" = "Msxml" "{5AE58FCF-6F6A-49B2-B064-02492C66E3F4}" = "MUCatalogWebControl Class" "{CAFEEFAC-0016-0000-0031-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_31" "{0A9CDB52-EBDF-4210-9C6A-B90C2FD410AB}" = "PowerBroker Desktops Browser Helper" "{2E5E4BAC-FEC7-4DD6-AFAF-F4139B1B9FB6}" = "LsiBrowserHook Class" "{24DA047B-40C0-4018-841B-6B7409F730FC}" = "Adobe Acrobat Sharepoint OpenDocuments Component" "{8075631E-5146-11D5-A672-00B0D022E945}" = "SharepointOpenXMLDocuments" "{36D792B3-CEA5-454E-A7EF-5B045E60EDEF}" = "DBGrid Control" "{E304B70C-0FCE-4E1B-9C81-CDAAD9F7DA55}" = "Microsoft DBList Control, version 6.0" "{783D26D7-B4A4-4CFB-8531-78C5DCF52C8E}" = "WebClass" "{47DEF242-7DAF-4828-936A-895FC81D92F8}" = "Microsoft MAPI Session Control, version 6.0" "{1B6413C2-C55E-4BA7-B4DF-1A71DBC6ACC2}" = "Microsoft MAPI Messages Control, version 6.0 (SP6)" "{20E72BC7-287F-4FCD-BFB7-156FF242C27C}" = "ExportFormat Object" "{018BCA43-2122-4211-9589-458B6A6E2A63}" = "ExportFormats Object" "{6E5311A1-325D-4FFD-9AF4-B373F02AE458}" = "Microsoft WinSock Control, version 6.0 (SP6)" "{AFB66F3E-7A33-41E9-A4F7-FE87B64F5555}" = "Microsoft Picture Clip Control, version 6.0 (SP6)" "{D7FFEFBC-C693-4E6F-AE2E-ED001389CB17}" = "DataAdapter Object" "{62B025F5-F551-44A9-8BA8-0118EFB9127C}" = "Microsoft Chart Control 6.0 (SP6) (OLEDB)" "{6785E9BB-087E-4772-8CA5-3331CC3B574E}" = "Microsoft RemoteData Control, version 6.0 (SP6)" "{E2D211D5-11E4-4D9E-B6DB-1E902C851A49}" = "Microsoft Internet Transfer Control 6.0 (SP6)" "{4EE74AEC-8008-455E-AEC5-9726CF1E85BB}" = "BindingCollection Object" "{E9AEB8A9-DB8B-425F-8133-69CA06187353}" = "Microsoft DataRepeater Control, version 6.0" "{A7F31C6B-5300-47C8-A642-5AC673794C92}" = "Microsoft Data Report Runtime 6.0 (SP4)" "{F6565773-FA54-45E9-941C-2505E54D5710}" = "Microsoft Communications Control, version 6.0 (SP6)" "{234086BB-0242-46C5-B71F-5A9B961DB911}" = "Microsoft ADO Data Control 6.0 (SP6) (OLEDB)" "{D88A442E-9C85-48E3-A6F8-EF61C93989A0}" = "Microsoft SysInfo Control, version 6.0 (SP6)" "{12E15F8F-412E-4760-94E3-BE47521668BA}" = "Data Report" "{CB2C5FC2-C7ED-4CC1-AF07-5C5485DAB3B1}" = "DHTMLPageRuntime Object" "{E436987E-F427-4AD7-8738-6D0895A3E93F}" = "Addin Class" "{AB5357A7-3179-47F9-A705-966B8B936D5E}" = "Addin Class" "{1E9B270D-5829-490E-84F5-1C25D74BF01D}" = "DHTMLPageRuntimeWinEvent Object" "{F65348F7-505D-4FAB-B66C-D76CFFC2BD78}" = "Microsoft Multimedia Control, version 6.0 (SP6)" "{A57635FC-8D02-4D32-8B6E-4FBD4E2DB8A7}" = "Microsoft Masked Edit Control, version 6.0 (SP6)" "{D6F004C5-DC12-4B65-8730-2E95AD459F10}" = "DHTMLPageRuntimeEvent Object" "{E404CD92-E7B8-4037-918D-5A18CFD09ED3}" = "Microsoft DataList Control, version 6.0 (SP6) (OLEDB)" "{D3CCB2F7-0D00-4F26-9569-D7C368DE34E2}" = "Microsoft DataCombo Control, version 6.0 (SP6) (OLEDB)" "{30854451-8F2D-4282-8070-73A801B560A3}" = "Microsoft DBCombo Control, version 6.0" "{0D43FE01-F093-11CF-8940-00A0C9054228}" = "FileSystem Object" "{48123BC4-99D9-11D1-A6B3-00C04FD91555}" = "XML Document" "{4EB89FF4-7F78-4A0F-8B8D-2BF02E94E4B2}" = "Microsoft RDP Client Control (redistributable) - version 6" "{72C24DD5-D70A-438B-8A42-98424B88AFB8}" = "Windows Script Host Shell Object" "{F5078F40-C551-11D3-89B9-0000F81FE221}" = "XML Document 3.0" "{3356DB7C-58A7-11D4-AA5C-006097314BF8}" = "LaunchObj Class" "{38681FBD-D4CC-4A59-A527-B3136DB711D3}" = "Tumbleweed SecureTransport FileTransfer English" "{4871A87A-BFDD-4106-8153-FFDE2BAC2967}" = "DLM Control" "{99098758-CB85-4A90-924F-F21898796281}" = "Microsoft Office Slide Library Control" "{F9152AEC-3462-4632-8087-EEE3C3CDDA24}" = "GEPluginCoClass Object" "{24B224E0-9545-4A2F-ABD5-86AA8A849385}" = "Microsoft TabStrip Control, version 6.0" "{F91CAF91-225B-43A7-BB9E-472F991FC402}" = "Microsoft ImageList Control, version 6.0" "{7DC6F291-BF55-4E50-B619-EF672D9DCC58}" = "Microsoft Toolbar Control, version 6.0" "{627C8B79-918A-4C5C-9E19-20F66BF30B86}" = "Microsoft StatusBar Control, version 6.0" "{996BF5E0-8044-4650-ADEB-0B013914E99C}" = "Microsoft ListView Control, version 6.0" "{9181DC5F-E07D-418A-ACA6-8EEA1ECB8E9E}" = "Microsoft TreeView Control, version 6.0" "{12A66224-5E8A-4679-8941-0B9B960BF5EA}" = "VistaWUWebControl Class" "{166B1BCA-3F9C-11CF-8075-444553540000}" = "Shockwave ActiveX Control" "{2A646672-9C3A-4C28-9A7A-1FB0F63F28B6}" = "IE 4.x-6.x BHO for Internet Download Accelerator" "{9819CC0E-9669-4D01-9CD7-2C66DA43AC6C}" = "&Internet Download Accelerator" "{0055C089-8582-441B-A0BF-17B458C2A3A8}" = "IDM integration (IDMIEHlprObj Class)" "{0002E541-0000-0000-C000-000000000046}" = "Microsoft Office Spreadsheet 10.0" "{0002E542-0000-0000-C000-000000000046}" = "Microsoft Office PivotTable 10.0" "{0002E543-0000-0000-C000-000000000046}" = "Microsoft Office Data Source Control 10.0" "{0002E546-0000-0000-C000-000000000046}" = "Microsoft Office Chart 10.0" "{A9667083-5060-4f44-88FB-9FF7487BBA1B}" = "Intuit QuickBooks Connector" "{99D1A18F-504B-4539-8AD2-9603D4F764B8}" = "HHClass Class" "{D20F1B09-2417-47B9-9C6A-95ABE4B98D28}" = "InstanceFinderUtil Class" "{6D2459CD-9AA2-48a1-A4FB-ABB8E87F4C0D}" = "AnswerWorks 5 API" "{2318C2B1-4965-11d4-9B18-009027A5CD4F}" = "Google Toolbar" "{AA58ED58-01DD-4d91-8333-CF10577473F7}" = "Google Toolbar Helper" "{AF69DE43-7D58-4638-B6FA-CE66B5AD205D}" = "Google Toolbar Notifier BHO" "{D5233FCD-D258-4903-89B8-FB1568E7413D}" = "Act.UI.InternetExplorer.Plugins.AttachFile.CAttachFile" "{6F431AC3-364A-478b-BBDB-89C7CE1B18F6}" = "Attach Web page to ACT! contact..." "{CAFEEFAC-0016-0000-0037-ABCDEFFEDCBA}" = "Java Plug-in 1.6.0_37" "{CD3AFA8F-B84F-48F0-9393-7EDC34128127}" = "VIDEO__X_MS_ASF Moniker Class" "{CD3AFA9A-B84F-48F0-9393-7EDC34128127}" = "VIDEO__QUICKTIME Moniker Class" } # Doc Mode Reasons $docmodereasons = @{ "0" = "Uninitialized" "1" = "MSHTMPAD tracetags for DRTs" "2" = "Session document mode supplied" "3" = "FEATURE_DOCUMENT_COMPATIBLE_MODE fck" "4" = "X-UA-Compatible meta tag" "5" = "X-UA-Compatible HTTP header" "6" = "CVList-imposed mode" "7" = "Native XML Parsing Mode" "8" = "Toplevel QME FCK was set, and mode was determined by it" "9" = "Document mode is the result of the page's doctype and the browser mode" "10" = "mode supplied as a hint (not set by a rule)" "11" = "We've been constrained to a family can only have a single mode (not set by a rule)" "12" = "Webplatform version supplied; therefore align doc mode to webplatform version" "13" = "Top level image file is set, and mode was determined by it" "14" = "Feed viewer mode determines doc mode" } # Browser State Reasons $browserstatereasons = @{ "0" = "Unitialized"; "1" = "Intranet sites in Compatibility View checked"; "2" = "Site is on Group Policy CV list"; "3" = "Added to the CV list by the user"; "4" = "X-UA-Compatible applied to page"; "5" = "Set by the developer toolbar"; "6" = "FEATURE_BROWSER_EMULATION fck"; "7" = "Site on MS CV list"; "8" = "Site on Quirks Group Policy list"; "10" = "WebPlatform version supplied"; "11" = "Browser Default"; } $zones = @{ "-1" = "INVALID" "0" = "LOCAL_MACHINE" "1" = "INTRANET" "2" = "TRUSTED" "3" = "INTERNET" "4" = "UNTRUSTED" } } Process { $compcount = $ComputerName.count $si=1 $IEUrlData = @() ForEach ($comp in $ComputerName) { Write-Progress -Activity "Retrieving IE Telemetry URL information from $comp" -Status "Processing $si of $compcount" -PercentComplete (($si / $compcount) * 100) If (Test-Connection -ComputerName "$comp" -Count 1 -Quiet) { $IEUrlInfoData = Get-WMIObject -ComputerName $comp -namespace root/cimv2/IETelemetry -query "Select * from IESystemInfo where systemKey = 'SystemKey'" -ErrorAction SilentlyContinue If ([string]::IsNullOrEmpty($IEUrlInfoData) -eq $false) { $IEUrlInfoDataSrc = Get-WMIObject -ComputerName $comp -namespace root/cimv2/IETelemetry -Class IEURLInfo $IESystemInfoDataSrc = Get-WMIObject -ComputerName $comp -namespace root/cimv2/IETelemetry -Class IESystemInfo $IECountInfoDataSrc = Get-WMIObject -ComputerName $comp -namespace root/cimv2/IETelemetry -Class IECountInfo ForEach ($entry in $IEUrlInfoDataSrc) { $object = New-Object -TypeName PSObject $object | Add-Member -MemberType NoteProperty -Name ComputerName -Value $comp $object | Add-Member -MemberType NoteProperty -Name IESystemInfo -Value $IESystemInfoDataSrc $object | Add-Member -MemberType NoteProperty -Name IECountInfo -Value $IECountInfoDataSrc $object | Add-Member -MemberType NoteProperty -Name ActiveXGUID -Value $entry.ActiveXGUID $activexdesc = @() ForEach ($guid in $entry.ActiveXGUID -split ",") { If ([string]::IsNullOrEmpty($guid)) { $guid = "No ActiveX detected" $axname = "$null" } Else { $axname = $activexlist["$guid"] If ([string]::IsNullOrEmpty($axname)) { $axname = "no reference found" } } $object1 = New-Object -TypeName PSObject $object1 | Add-Member -MemberType NoteProperty -Name URL -Value $entry.URL $object1 | Add-Member -MemberType NoteProperty -Name ActiveXGUID -Value $guid $object1 | Add-Member -MemberType NoteProperty -Name Description -Value $axname $activexdesc += $object1 } $object | Add-Member -MemberType NoteProperty -Name ActiveXDetail -Value $activexdesc $object | Add-Member -MemberType NoteProperty -Name BrowserStateReason -Value $entry.BrowserStateReason $object | Add-Member -MemberType NoteProperty -Name BrowserStateReasonDesc -Value $browserstatereasons["$($entry.BrowserStateReason)"] $object | Add-Member -MemberType NoteProperty -Name CrashCount -Value $entry.CrashCount $object | Add-Member -MemberType NoteProperty -Name DocMode -Value $entry.DocMode $object | Add-Member -MemberType NoteProperty -Name DocModeReason -Value $entry.DocModeReason $object | Add-Member -MemberType NoteProperty -Name DocModeReasonDesc -Value $docmodereasons["$($entry.DocModeReason)"] $object | Add-Member -MemberType NoteProperty -Name Domain -Value $entry.Domain $object | Add-Member -MemberType NoteProperty -Name HangCount -Value $entry.HangCount $object | Add-Member -MemberType NoteProperty -Name MostRecentNavigationFailure -Value $entry.MostRecentNavigationFailure $object | Add-Member -MemberType NoteProperty -Name NavigationFailureCount -Value $entry.NavigationFailureCount $object | Add-Member -MemberType NoteProperty -Name NumberOfVisits -Value $entry.NumberOfVisits $object | Add-Member -MemberType NoteProperty -Name URL -Value $entry.URL $object | Add-Member -MemberType NoteProperty -Name Zone -Value $entry.Zone $object | Add-Member -MemberType NoteProperty -Name ZoneDescription -Value $zones["$($entry.Zone)"] $IEUrlData += $object } } Else { Write-Output "Namespace: root/cimv2/IETelemetry or Class: IESystemInfo not found on $comp" } } Else { Write-verbose "Computer: $comp unreachable" } $si++ # increase progress bar count } } End { if ($PSBoundParameters.ContainsKey("ActiveX")) { $IEUrlData | Select-Object * | Select-Object -ExpandProperty ActiveXDetail } Else { $IEUrlData } } } |
