Looking at a client’s ConfigMgr Agent log files is inevitable when managing a Configuration Manager infrastructure. If you are working within a local area network only, then you will most likely just connect to the remote systems configuration manager log folder and drag and drop the appropriate log files into CMTrace.exe. But if your clients are distributed across a WAN network with slow network links opening the log file from a remote location is probably not the most efficient way for analyzing the log files content. And because troubleshooting typically requires looking at multiple log files you finally end up copying multiple log files or just the whole log folder to your client to open them locally.
I have therefore created the below listed Get-RemoteCMLogs.ps1 PowerShell script that does the following:
- Connect to the remote client via PowerShell Remoting
- On the remote client start a process to create a ZIP file containing the ConfigMgr logs folder and windowsupdate.log
- From the remote client create a new remote connection back to the host that invoked the script
- Transfer the ZIP file through the PowerShell Remoting session and store it locally with the users Documents Folder
The script uses two additional functions written by others. The ZIP File functions was written by Ken Sweet and the Send-File function was written by Lee Holmes.
Note that the use of this script requires that Windows Remote Management (WinRM) is enabled within your environment.
After you have downloaded the script from here. Open a PowerShell command prompt and enter

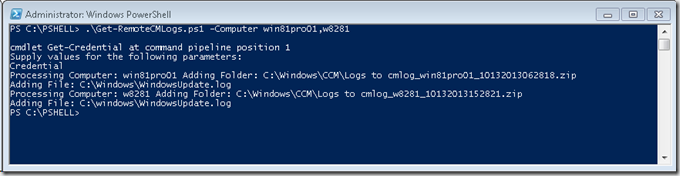

Get-RemotCMLogs.ps1 -Computer <Computername>,<Computername>
Next you will be prompted to enter your credentials. Enter a username and password that has permissions on the remote and local client.

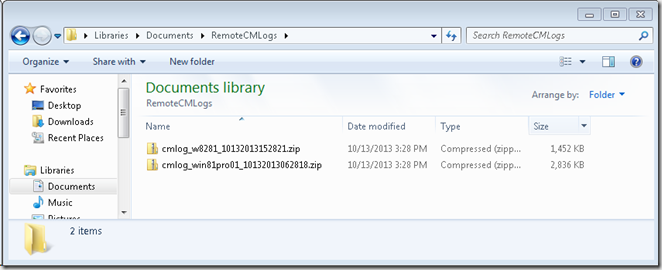

Once completed, you will have the log files stored in your Documents \ RemoteCMlogs folder.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 |
<# .Synopsis Gather Configuration Manager log files from remote systems .DESCRIPTION The script uses PowerShell remoting to connect to the remote client, then creates a ZIP archive file remotely containing all Configuration Manager log files and then transfers the archive back. .EXAMPLE Get-RemoteCMLogs -Computer computer1, computer2 .NOTES Version 1.0 Written by Alex Verboon, Zip function written by Kenneth D. Sweet, Send-File function wirtten by lee holmes Requirements: WinRM must be enabled #> [cmdletbinding()] Param( [Parameter(Mandatory=$True,Position=0)] [string[]]$Computername ) Function Get-CMLogs ($Computername) { #-------------------------------------------------------------------------------------- # Global Variables #-------------------------------------------------------------------------------------- # The location where the CM Agent log files are stored, will make this dynamic in a future release # currently this relates to the CM12 Agent $CMLogFldr = "C:\Windows\CCM\Logs" $ThisComputer = [System.Net.Dns]::GetHostByName(($env:computerName)).HostName #The folder where the log archive files are stored to $localtmpfolder = "$env:USERPROFILE\Documents\RemoteCMLogs" #Check if the RemoteCMlogs folder already exists othrwise create it If (!(Test-path $localtmpfolder)) {New-Item -ItemType directory -Path $localtmpfolder} $cred = Get-Credential Function ZIP-CMlogs ($Computername, $CMLogFldr, $ThisComputer,$cred,$localtmpfolder) { #-------------------------------------------------------------------------------------- # ZIP File Function. Credits for this function go to Kenneth D. Sweet # http://gallery.technet.microsoft.com/ZIP-Files-script-b5374a5d/view/Discussions#content #-------------------------------------------------------------------------------------- Function Zip-File () { <# .SYNOPSIS Add, Removes, and Extracts files and folders to a Zip Archive .DESCRIPTION Add, Removes, and Extracts files and folders to a Zip Archive .PARAMETER ZipFile Name os Zip Archive .PARAMETER Add Names of Files or Folders to Add to Zip Archive Will not overwrite existing Files in the Zip Archive Will only add in Files from Sub Folders to the Zip Archive when you add a Folder .PARAMETER Remove Names of Files or Folders to Remove from Zip Archive If "Display Delete Confirmation" is enable you will be prompted confirm to Remove each File .PARAMETER Extract Names of Files or Folders to Extract from Zip Archive Recreates Folders structure when extracting Files, even Folders that have no Matching Files to Extract .PARAMETER Destination Destination Folder to Extract Files or Folders to .PARAMETER Folders Add, Remove, or Extract Folders instead of Files from the Zip Archive .PARAMETER List List the Contents of the Zip Archive .INPUTS .OUTPUTS .NOTES Written by Kenneth D. Sweet CopyRight (c) 2012 Add, Removes, and Extracts files and folders to a Zip Archive .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Add "C:\Temp\Temp_01.txt", "C:\Temp\Temp_02.txt" .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Add "C:\Temp_01", "C:\Temp_02" -Folders .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Remove "*.xls", "*.xlsx" .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Remove "Temp_01" -Folders .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Extract "*.doc", "*.docx"-Destination "C:\Temp" .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -Extract "Temp_02" -Destination "C:\Temp" -Folders .EXAMPLE Zip-File -ZipFile "C:\Test.zip" -List .LINK Ken Sweet Rules the MultiVerse #> [CmdletBinding(DefaultParameterSetName="Add")] Param( [Parameter(Mandatory=$True, ParameterSetName="Add")] [Parameter(Mandatory=$True, ParameterSetName="Remove")] [Parameter(Mandatory=$True, ParameterSetName="Extract")] [Parameter(Mandatory=$True, ParameterSetName="List")] [String]$ZipFile, [Parameter(Mandatory=$True, ParameterSetName="Add")] [String[]]$Add, [Parameter(Mandatory=$False, ParameterSetName="Add")] [Switch]$Recurse, [Parameter(Mandatory=$True, ParameterSetName="Remove")] [String[]]$Remove, [Parameter(Mandatory=$True, ParameterSetName="Extract")] [String[]]$Extract, [Parameter(Mandatory=$False, ParameterSetName="Extract")] [String]$Destination=$PWD, [Parameter(Mandatory=$False, ParameterSetName="Add")] [Parameter(Mandatory=$False, ParameterSetName="Remove")] [Parameter(Mandatory=$False, ParameterSetName="Extract")] [Switch]$Folders, [Parameter(Mandatory=$True, ParameterSetName="List")] [Switch]$List ) DynamicParam { if ($ZipFile -match ".*Zip\\.*") { $NewAttrib = New-Object -TypeName System.Management.Automation.ParameterAttribute $NewAttrib.ParameterSetName = "List" $NewAttrib.Mandatory = $True $AttribCollection = New-Object -TypeName System.Collections.ObjectModel.Collection[System.Attribute] $AttribCollection.Add($NewAttrib) $DynamicParam = New-Object -TypeName System.Management.Automation.RuntimeDefinedParameter("Path", [String], $AttribCollection) $paramDictionary = New-Object -TypeName System.Management.Automation.RuntimeDefinedParameterDictionary $paramDictionary.Add("Path", $DynamicParam) return $ParamDictionary } } Begin { $Shell = New-Object -ComObject Shell.Application if (![System.IO.File]::Exists($ZipFile) -and ($PSCmdlet.ParameterSetName -eq "Add")) { Try { [System.IO.File]::WriteAllText($ZipFile, $("PK" + [Char]5 + [Char]6 + $("$([Char]0)" * 18))) } Catch { } } $ZipArchive = $Shell.NameSpace($ZipFile) if ($PSCmdlet.ParameterSetName -eq "Add") { $TempFolder = "$([System.IO.Path]::GetTempPath())$([System.IO.Path]::GetRandomFileName())" if (![System.IO.Directory]::Exists($TempFolder)) { [Void][System.IO.Directory]::CreateDirectory($TempFolder) } } } Process { Switch ($PSCmdlet.ParameterSetName) { "Add" { Try { if ($Folders) { ForEach ($File in $Add) { $SearchPath = [System.IO.Path]::GetDirectoryName($File) $SearchName = [System.IO.Path]::GetFileName($File) $DirList = [System.IO.Directory]::GetDirectories($SearchPath, $SearchName) $Total = $ZipArchive.Items().Count ForEach ($Dir in $DirList) { $ParseName = $ZipArchive.ParseName([System.IO.Path]::GetFileName($Dir)) if ([String]::IsNullOrEmpty($ParseName)) { if (!$Recurse) { # Write-Host "Adding Folder: $Dir " original line from zip function Write-Host "Processing Computer: $Computername Adding Folder: $Dir to $filename" # customized message } $ZipArchive.CopyHere($Dir, 0x14) Do { [System.Threading.Thread]::Sleep(100) } While ($ZipArchive.Items().Count -eq $Total) } else { if (!$Recurse) { Write-Host "Folder Exists in Archive: $Dir" } } } } } else { ForEach ($File in $Add) { $SearchPath = [System.IO.Path]::GetDirectoryName($File) $SearchName = [System.IO.Path]::GetFileName($File) $FileList = [System.IO.Directory]::GetFiles($SearchPath, $SearchName) $Total = $ZipArchive.Items().Count ForEach ($File in $FileList) { $ParseName = $ZipArchive.ParseName([System.IO.Path]::GetFileName($File)) if ([String]::IsNullOrEmpty($ParseName)) { Write-Host "Adding File: $File" $ZipArchive.CopyHere($File, 0x14) Do { [System.Threading.Thread]::Sleep(100) } While ($ZipArchive.Items().Count -eq $Total) } else { Write-Host "File Exists in Archive: $File" } } if ($Recurse) { $DirList = [System.IO.Directory]::GetDirectories($SearchPath) ForEach ($Dir in $DirList) { $NewFolder = [System.IO.Path]::GetFileName($Dir) if (!$ZipArchive.ParseName($NewFolder)) { [Void][System.IO.Directory]::CreateDirectory("$TempFolder\$NewFolder") [System.IO.File]::WriteAllText("$TempFolder\$NewFolder\.Dir", "") Zip-File -ZipFile $ZipFile -Add "$TempFolder\$NewFolder" -Folders -Recurse } $NewAdd = @() ForEach ($Item in $Add) { $NewAdd += "$([System.IO.Path]::GetDirectoryName($Item))\$NewFolder\$([System.IO.Path]::GetFileName($Item))" } Zip-File -ZipFile "$ZipFile\$NewFolder" -Add $NewAdd -Recurse:$Recurse } } } } } Catch { Throw "Error Adding Files to Zip Archive" } Break } "Remove" { Try { ForEach ($File in $Remove) { if ($Folders) { $($ZipArchive.Items() | Where-Object -FilterScript { $_.IsFolder -and (($_.Name -eq $File) -or ($_.Name -match $File.Replace('.', '\.').Replace('*', '.*'))) }) | ForEach-Object -Process { Write-Host "Removing Folder: $($_.Name)"; $_.InvokeVerbEx("Delete", 0x14) } } else { $($ZipArchive.Items() | Where-Object -FilterScript { !$_.IsFolder -and (($_.Name -eq $File) -or ($_.Name -match $File.Replace('.', '\.').Replace('*', '.*'))) }) | ForEach-Object -Process { Write-Host "Removing File: $($_.Name)"; $_.InvokeVerbEx("Delete", 0x14) } } } ForEach ($Folder in $($ZipArchive.Items() | Where-Object -FilterScript { $_.IsFolder })) { Zip-File -ZipFile "$ZipFile\$($Folder.Name)" -Remove $Remove -Folders:$Folders } } Catch { Throw "Error Removing Files from Zip Archive" } Break } "Extract" { Try { if (![System.IO.Directory]::Exists($Destination)) { [Void][System.IO.Directory]::CreateDirectory($Destination) } $DestFolder = $Shell.NameSpace($Destination) ForEach ($File in $Extract) { if ($Folders) { $($ZipArchive.Items() | Where-Object -FilterScript { $_.IsFolder -and (($_.Name -eq $File) -or ($_.Name -match $File.Replace('.', '\.').Replace('*', '.*'))) }) | ForEach-Object -Process { Write-Host "Extracting Folder: $($_.Name) to $Destination"; $DestFolder.CopyHere($_, 0x14) } } else { $($ZipArchive.Items() | Where-Object -FilterScript { !$_.IsFolder -and (($_.Name -eq $File -and $_.Name -ne ".Dir") -or ($_.Name -match $File.Replace('.', '\.').Replace('*', '.*'))) }) | ForEach-Object -Process { Write-Host "Extracting File: $($_.Name) to $Destination"; $DestFolder.CopyHere($_, 0x14) } } } ForEach ($Folder in $($ZipArchive.Items() | Where-Object -FilterScript { $_.IsFolder })) { Zip-File -ZipFile "$ZipFile\$($Folder.Name)" -Extract $Extract -Destination "$Destination\$($Folder.Name)" -Folders:$Folders } } Catch { $Error[0] Throw "Error Extracting Files from Zip Archive" } Break } "List" { Try { $ZipArchive.Items() | Where-Object -FilterScript { !$_.IsFolder -and $_.Name -ne ".Dir" } | Select-Object -Property "Name", "Size", "ModifyDate", "Type", @{"Name"="Path";"Expression"={$(if ($($PSCmdlet.MyInvocation.BoundParameters["Path"])) {$($PSCmdlet.MyInvocation.BoundParameters["Path"])} else {"\"})}} ForEach ($Folder in $($ZipArchive.Items() | Where-Object -FilterScript { $_.IsFolder })) { Zip-File -ZipFile "$ZipFile\$($Folder.Name)" -List -Path "$(if ($($PSCmdlet.MyInvocation.BoundParameters["Path"])) {$($PSCmdlet.MyInvocation.BoundParameters["Path"])})\$($Folder.Name)" } } Catch { Throw "Error Listing Files in Zip Archive" } Break } } } End { $Shell = $Null $ZipArchive = $Null if ($PSCmdlet.ParameterSetName -eq "Add") { if ([System.IO.Directory]::Exists($TempFolder)) { [Void][System.IO.Directory]::Delete($TempFolder, $True) } } } } # end of ZIP-File Function Function Send-File { ############################################################################## ## ## Send-File ## ## From Windows PowerShell Cookbook (O'Reilly) ## by Lee Holmes (http://www.leeholmes.com/guide) ## ## http://www.powershellcookbook.com/recipe/ISfp/program-transfer-a-file-to-a-remote-computer ############################################################################## <# .SYNOPSIS Sends a file to a remote session. .EXAMPLE PS >$session = New-PsSession leeholmes1c23 PS >Send-File c:\temp\test.exe c:\temp\test.exe $session #> param( ## The path on the local computer [Parameter(Mandatory = $true)] $Source, ## The target path on the remote computer [Parameter(Mandatory = $true)] $Destination, ## The session that represents the remote computer [Parameter(Mandatory = $true)] [System.Management.Automation.Runspaces.PSSession] $Session ) Set-StrictMode -Version Latest ## Get the source file, and then get its content $sourcePath = (Resolve-Path $source).Path $sourceBytes = [IO.File]::ReadAllBytes($sourcePath) $streamChunks = @() ## Now break it into chunks to stream Write-Progress -Activity "Sending $Source" -Status "Preparing file" $streamSize = 1MB for($position = 0; $position -lt $sourceBytes.Length; $position += $streamSize) { $remaining = $sourceBytes.Length - $position $remaining = [Math]::Min($remaining, $streamSize) $nextChunk = New-Object byte[] $remaining [Array]::Copy($sourcebytes, $position, $nextChunk, 0, $remaining) $streamChunks += ,$nextChunk } $remoteScript = { param($destination, $length) ## Convert the destination path to a full filesytem path (to support ## relative paths) $Destination = $executionContext.SessionState.` Path.GetUnresolvedProviderPathFromPSPath($Destination) ## Create a new array to hold the file content $destBytes = New-Object byte[] $length $position = 0 ## Go through the input, and fill in the new array of file content foreach($chunk in $input) { Write-Progress -Activity "Writing $Destination" ` -Status "Sending file" ` -PercentComplete ($position / $length * 100) [GC]::Collect() [Array]::Copy($chunk, 0, $destBytes, $position, $chunk.Length) $position += $chunk.Length } ## Write the content to the new file [IO.File]::WriteAllBytes($destination, $destBytes) ## Show the result Get-Item $destination [GC]::Collect() } ## Stream the chunks into the remote script $streamChunks | Invoke-Command -Session $session $remoteScript ` -ArgumentList $destination,$sourceBytes.Length } ### End of Send-File function # -----------------------------------------------------------------------------------------------------------------------# # Below are the commands we execute remotely # -----------------------------------------------------------------------------------------------------------------------# # Get the Windows Temp folder on the remote system $tmpfolder = "$env:SystemRoot\TEMP\" # create timestamp variable $timestamp = $((get-date).tostring("MMddyyyyHHmmss")) # construct the filename including the path $filename = "cmlog_" + $Computername + "_" + $timestamp + ".zip" # Generate ZIP file with content from CM log folder. Note the $CMLogFldr variable is defined at the top of the script. If (Test-path $CMLogFldr) {zip-file -ZipFile "$tmpfolder$filename" -Add $CMLogFldr -Folders} Else {Write-Warning "Could not find folder" $CMLogFldr} # Because the Windowsupdate.log file is also important we also collect it If (Test-path "$env:Systemroot\Windowsupdate.log") {zip-file -ZipFile "$tmpfolder$filename" -Add "$env:Systemroot\Windowsupdate.log"} Else {Write-Warning "Could not find $env:Systemroot\Windowsupdate.log" } # On the remote machine, start a new remote session back to the script execution host $RSession = New-PSSession $ThisComputer -Credential $cred # Transfer the logs archive through the open session Send-File "$tmpfolder$filename" "$localtmpfolder\$filename" $RSession # close the session from the remote host to the script execution host Remove-PSSession $RSession } # End of ZIP-CMLogs function # -----------------------------------------------------------------------------------------------------------------------# # Commands from Get-CMLogs Main function # -----------------------------------------------------------------------------------------------------------------------# # Process all computers provided ForEach ($iComputername in $Computername) { Function Get-Remotelogs { # Settings this option prevents the creation of the user profile on the remote system $SesOpt = New-PSSessionOption -NoMachineProfile # Start a new Remote Session $ses = New-PSSession -ComputerName $iComputername -ErrorAction SilentlyContinue -SessionOption $SesOpt # Execute the ZIP-CMLogs function on the remote machine. $ab = Invoke-Command -Session $ses -ScriptBlock ${function:ZIP-CMlogs} -ArgumentList $iComputername, $CMLogFldr,$ThisComputer,$cred,$localtmpfolder # Clsoe the session Remove-PSSession $ses } Get-Remotelogs $iComputername } } # End of Get-CMLogs function # -----------------------------------------------------------------------------------------------------------------------# Get-CMLogs $Computername |
Note that the script is written to work with Configuration Manager 2012 Clients. I am planning for an updated version that first checks the agent version and then detects the log folder location. If you want to use the script for ConfigMgr 2007 agents simply adjust the $CMLogFldr variable at the beginning of the script.
Any comments, inputs are welcome.
Happy log file collecting!
This is to inform you that I had gone through your article it was very helpful for me as I was searching for a solution to open a remote SCCM2012 Client machine log file by CMtrace.exe which was spread across the globe through a WAN network. We are doing a Windows 7 Migration project from Windows XP Machines where if a task sequence fails, we need to troubleshoot it as soon as possible by checking the smsts.log file so my plan is not to copy the entire log file to My Document but I should be able to open the remote machine smsts.log file from my local machine through CMTrace.exe by the powershell script as soon as I enter the computer name into powershell I guess you are getting my point?
Usually by typing the full UNC Path \\computername\c$\windows\ccm\logs\smsts.log I used to open the log file. for one machine it is ok but if it is several machine it is a time consuming job.
So now I need a powershell script which should open the particular log file which is located in the remote machine as soon as I enter the computer name and it should open through the CMTrace tool from the local system itself from where I am working on….
