Group Policy Settings to control BITS Bandwidth usage

I just read the article BITS – More Flexible Bandwidth Limit Policies on the Windows Management Infrastructure Blog which describes how BITS bandwidth usage can be configured through Group Policy settings. For Windows 7 (or computers with BITS 3.5 installed) there are 2 Group Policies that provide more granular control of BITS bandwidth usage during working / non-working days/hours and during scheduled maintenance days/hours.

The 2 GPOs can be found under Computer Configuration -> Administrative Templates -> Network -> Background Intelligent Transfer Service

  • Set up a maintenance schedule to limit the maximum network bandwidth used for BITS background transfers
  • Set up a work schedule to limit the maximum network bandwidth used for BITS background transfers

Now let’s have a look how that works. The sample script starting a BITS transfer looks as following:

bitsadmin /TRANSFER waikdl http://download.microsoft.com/download/8/6/d/86d6ba9c-98ff-444e-87ed-3e76772eb2a6/vista_6000.16386.061101-2205-LRMAIK_EN.img C:\temp\waik.img

With no GPO configured the tasks starts with 1.16 MB/S and an estimated duration of 13 minutes.

2011-05-12 00h37_57

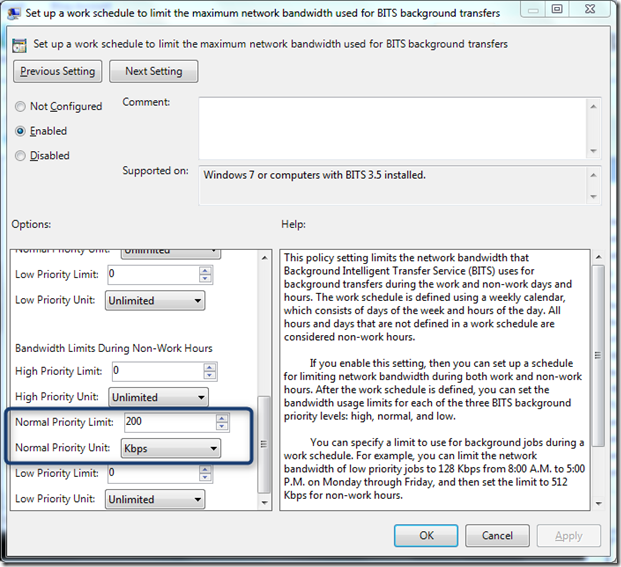

2011-05-12 00h40_24

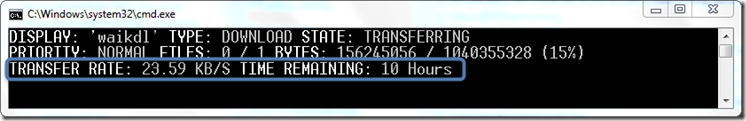

After having applied the GPO setting, we can clearly see that the transfer rate has dropped.

2011-05-12 00h39_30

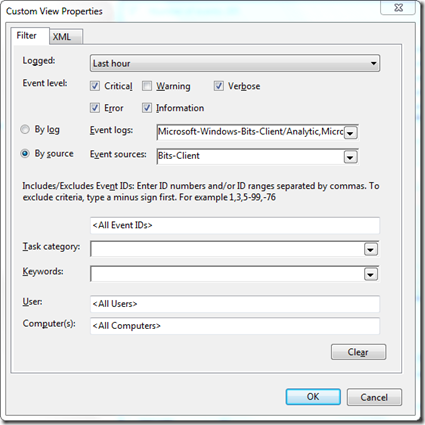

Setting up a custom Event Log view with the following properties allows you see what’s happening when the GPO is being applied.

2011-05-12 01h22_36
