Monitoring Service principal sign-ins with AzureAD and Azure Sentinel

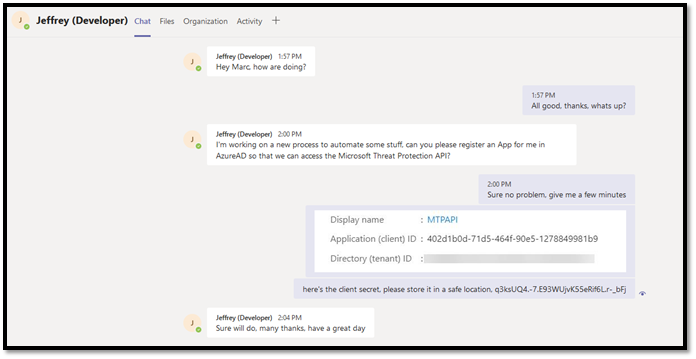

Here is a conversation between Jeffrey (Developer) and Marc (IT Admin) working for ECorp Ltd.

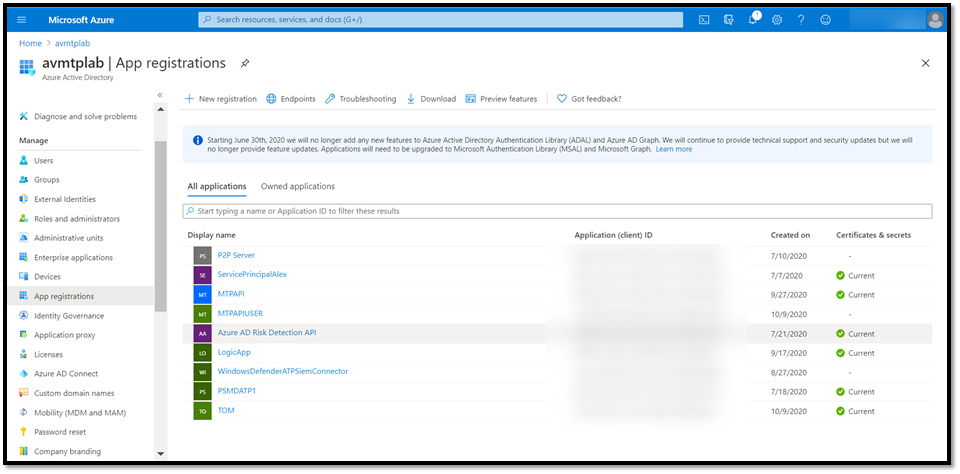

Looks familiar? Take a look in your Azure Active directory, how many applications do you have there? In an ideal world you maintain an inventory of all these applications somewhere in your asset management database so that you know who is the owner of the Application and what it is used for and what API permissions are granted. As for the client secret, this should be stored in a Vault.

Now we trust Jeffrey that he will take good care of the client secret, but what if for whatever reason that client secret gets in the wrong hands and is then used by someone to access information from the outside?

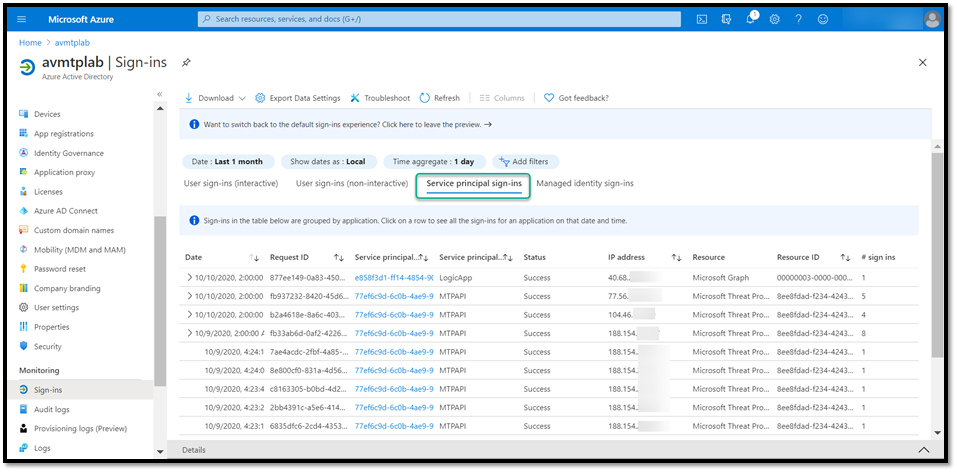

What we need is monitoring the use of the Application and alert when it is being used from an unknown location. The good news, service-principal sign-ins is in public preview right now. Within the Azure Active Directory portal, navigate to Monitoring, Sign-ins.

Great, so we can now see when the application was used and from where. The following information is stored in the AADServicePrincipalSignInLogs

Column Type


AppId string Unique GUID representing the app ID in the Azure Active Directory
Category string Category of the sign-in event
CorrelationId string ID to provide sign-in trail
DurationMs long The duration of the operation in milliseconds
Id string Unique ID representing the sign-in activity
Identity string The identity from the token that was presented when you made the request. It can be a user account, system account, or service principal
IPAddress string IP address of the client used to sign in
Level string The severity level of the event
Location string The region of the resource emitting the event
LocationDetails string Details of the sign-in location
OperationName string For sign-ins, this value is always Sign-in activity
OperationVersion string The REST API version that’s requested by the client
ResourceDisplayName string Name of the resource that the service principal signed into
ResourceGroup string Resource group for the logs
ResourceIdentity string ID of the resource that the service principal signed into
ResultDescription string Provides the error description for the sign-in operation
ResultSignature string Contains the error code, if any, for the sign-in operation
ResultType string The result of the sign-in operation can be Success or Failure
ServicePrincipalId string ID of the service principal who initiated the sign-in
ServicePrincipalName string Service Principal Name of the service principal who initiated the sign-in
SourceSystem string Details of source system of the object being provisioned
TenantId string
TimeGenerated datetie The date and time of the event in UTC
Type string The name of the table

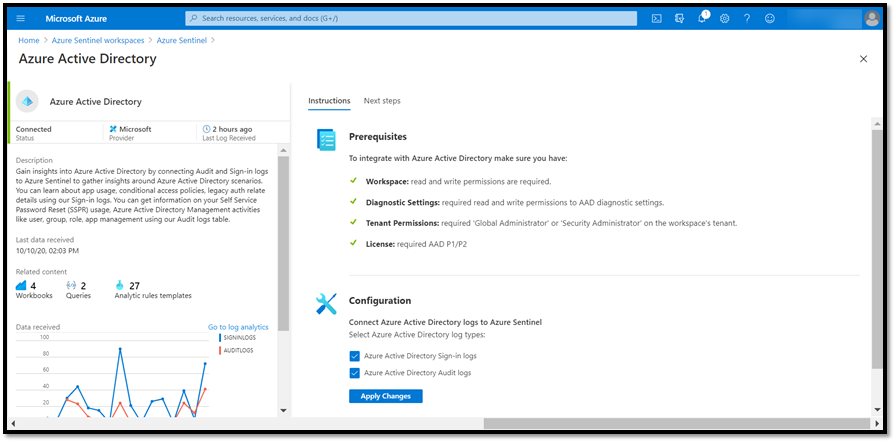

To monitor these events with Azure Sentinel, we first need to update the AzureAD connector configuration right?

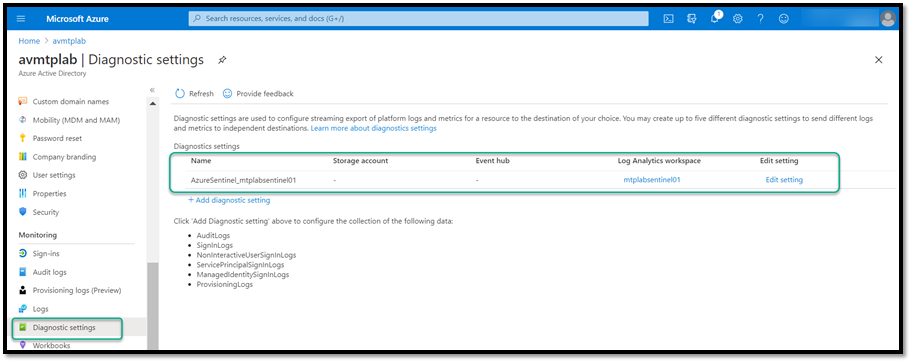

But wait, where are the additional logs? When you first enabled and configured the AzureAD connector, the configuration is stored within the Diagnostic Settings of AzureAD as shown below.

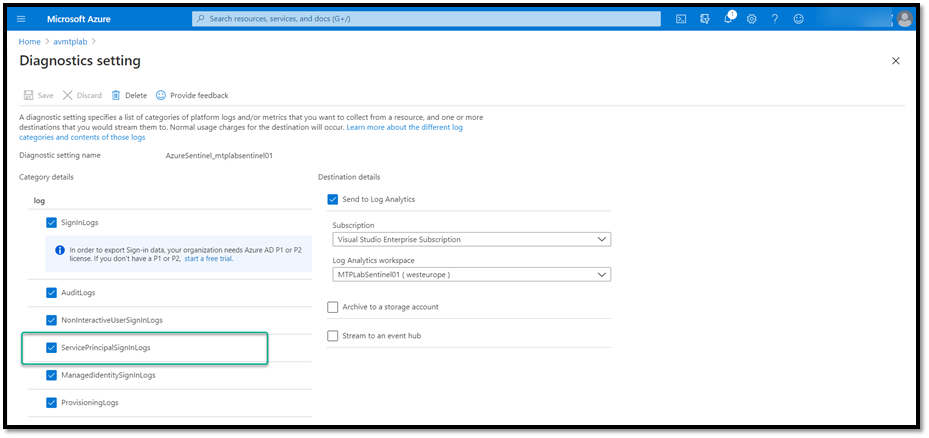

Click on Edit, and we now see the additional logs, enable them and save the configuration.

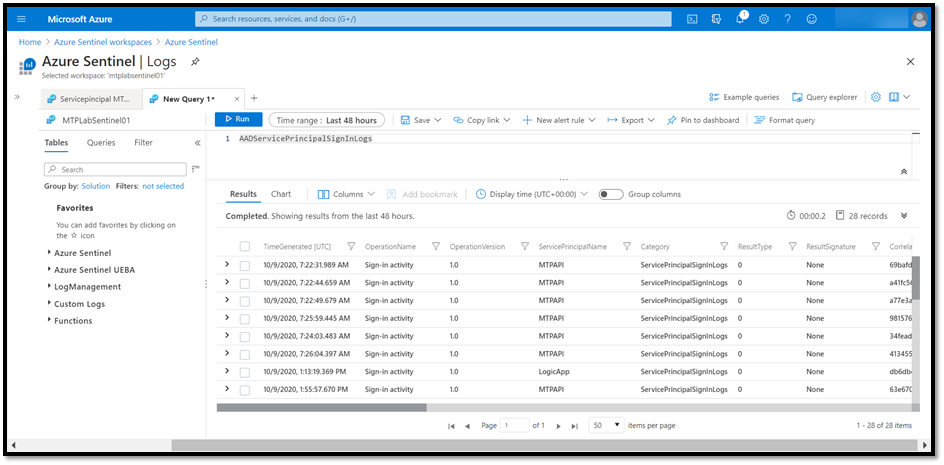

After a while we see the logs from AADServicePrincipalSignInLogs
coming into Azure Sentinel.

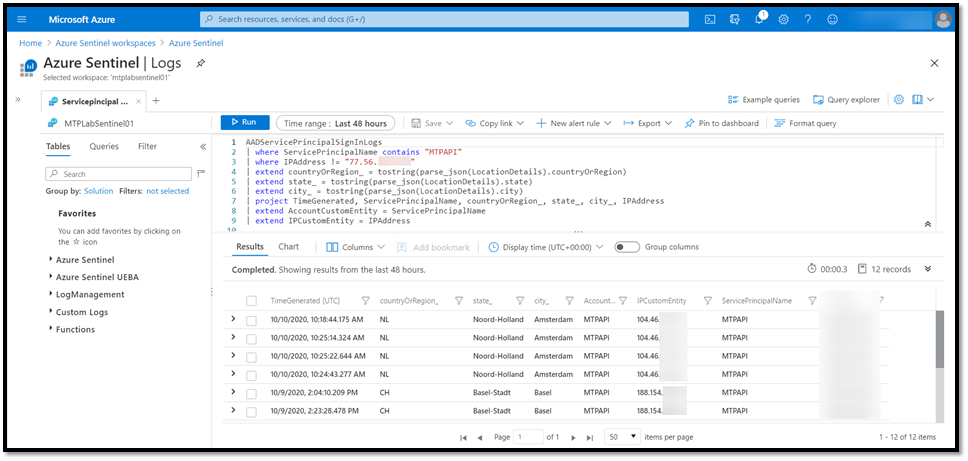

Below is the query for the scheduled Query rule in Azure Sentinel. The query will return all logs of the service principal sign-in that do not originate from a known IP address.

| where ServicePrincipalName contains "MTPAPI"
// your IP address
| where IPAddress != "77.56.n.n"
| extend countryOrRegion_ = tostring(parse_json(LocationDetails).countryOrRegion)
| extend state_ = tostring(parse_json(LocationDetails).state)
| extend city_ = tostring(parse_json(LocationDetails).city)
| project TimeGenerated, ServicePrincipalName, countryOrRegion_, state_, city_, IPAddress
| extend AccountCustomEntity = ServicePrincipalName
| extend IPCustomEntity = IPAddress

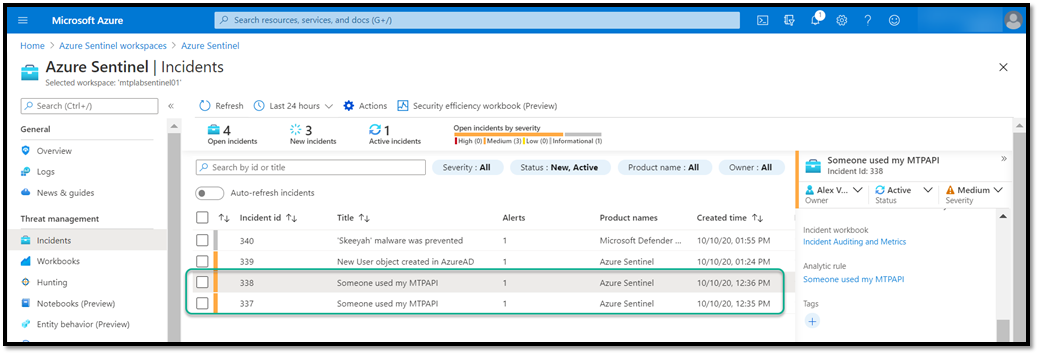

After setting up the scheduled query rule and accessing the application from two other different locations an incident is created in Azure Sentinel.
