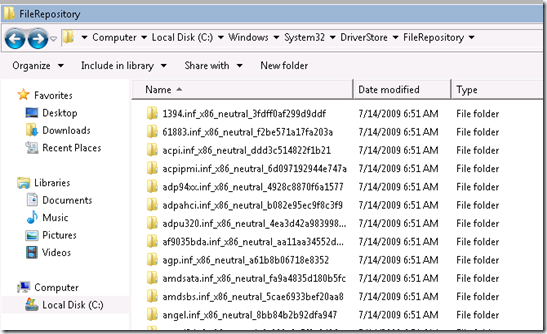

The driver store is a trusted location of inbox and third-party driver packages. This means that before a driver can be installed it must first be injected into the driver store, this process is called staging. Today I want to take a closer look at what is inside the driver store specifically the drivers that are included within Windows 7. The driver store is located under C:\Windows\System32\Driverstore.
To get list of all drivers installed (staged) within the driver store, open an elevated command prompt and enter the following command:
[sourcecode language=”plain”]
Dism /online /get-drivers /all /format:table >drivers2.txt
[/sourcecode]

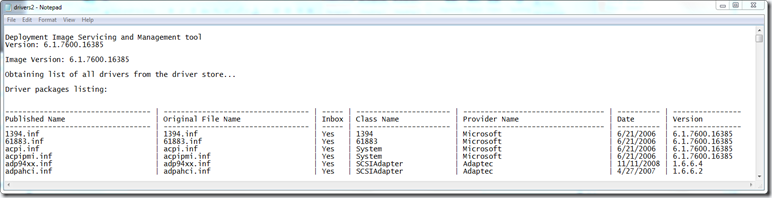

Note that if you do not specify the /all option, only the 3rd party (non-inbox) drivers are listed. What the command actually does is collecting all the information from each INF file that is stored within each driver package folder within the driver store.

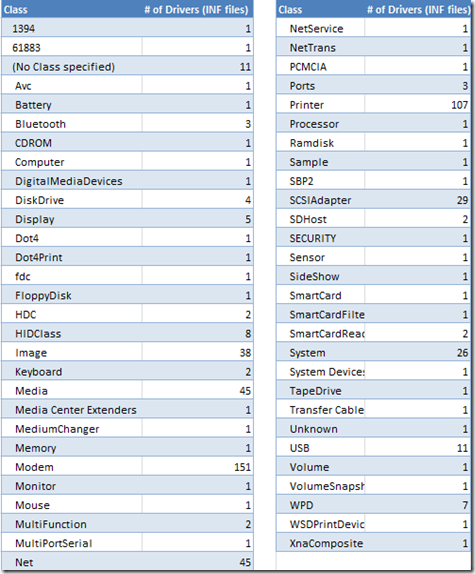

When organizing the data from drivers2.txt within Excel we get the following overview.
Is my device supported by the Windows 7 in-box drivers?
The primary goal of the in-box drivers is to allow users install Windows 7 so that basic functionality can be provided. This means that critical boot drivers as well as network and display drivers for most mainstream hardware is provided. Once the user can get online, additional drivers can be installed via Windows Update or by downloading an OEM driver installation package. In an Enterprise environment the drivers for the known supported hardware should of course already be installed at deployment time.
From the above table we see that there are 107 in-box drivers for Printers. So does windows 7 only support 107 different printers out of the box? No, because each printer driver can support multiple devices.

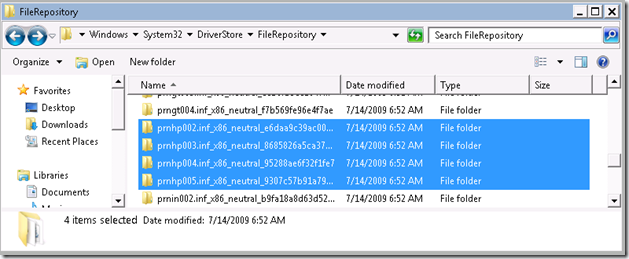

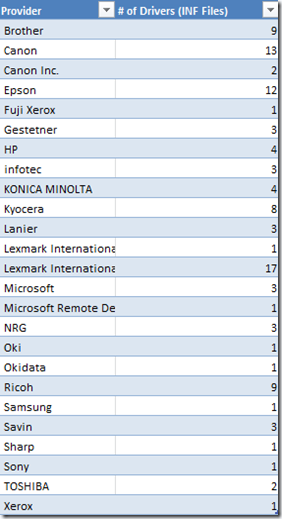

From the above list we can see that for HP Printing devices there are 4 INF files included within the in-box drivers.
To get the full detail of a particular driver and the devices it supports, run the following command from an elevated command prompt.
[sourcecode language=”plain”]
Dism /online /get-driverinfo /driver: <path to driver inf file>
[/sourcecode]
To get the full details for the above 4 listed HP printer drivers we run the following commands
[sourcecode language=”plain”]
Dism /online /get-driverinfo /driver:C:\Windows\System32\DriverStore\FileRepository\prnhp002.inf_x86_neutral_e6daa9c39ac001a3\prnhp002.inf >hp1.txt
Dism /online /get-driverinfo /driver:C:\Windows\System32\DriverStore\FileRepository\prnhp003.inf_x86_neutral_8685826a5ca37e6b\prnhp003.inf >hp2.txt
Dism /online /get-driverinfo /driver:C:\Windows\System32\DriverStore\FileRepository\prnhp004.inf_x86_neutral_95288ae6f32f1fe7\prnhp004.inf >hp3.txt
Dism /online /get-driverinfo /driver:C:\Windows\System32\DriverStore\FileRepository\prnhp005.inf_x86_neutral_9307c57b91a7985e\prnhp005.inf >hp4.txt
[/sourcecode]

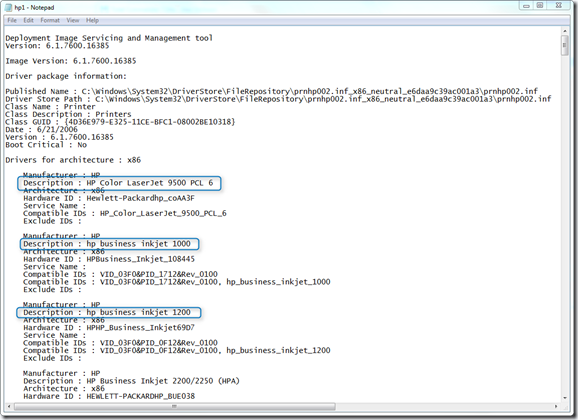

If now we open one of the output files we can see all the different HP printers the driver supports.
If we want to get this information into a nice Excel sheet, simply run the following command which extracts just the lines that start with “Description”.
[sourcecode language=”plain”]
FINDSTR /C "Description" c:\temp\drvstore\hp*.txt >>c:\temp\drvstore\hpprinters.log
[/sourcecode]

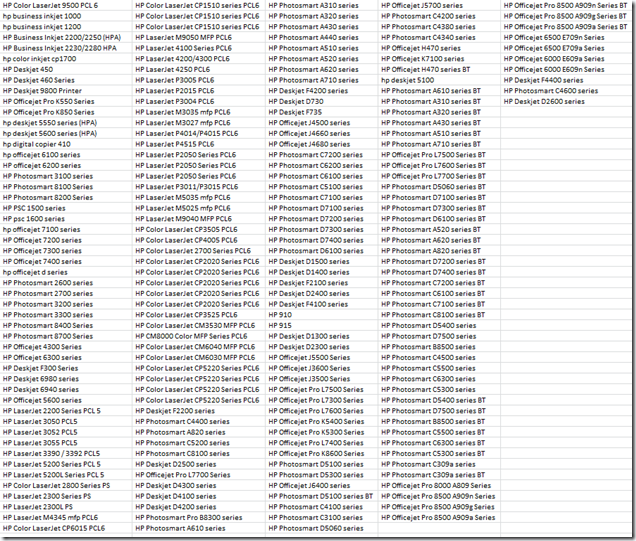

Then open the hpprinters.log and within the Text Import wizard select that this is a delimited file. I won’t go into the detail here, assume that you have some experience with importing text data within Excel.
Conclusion the Windows 7 in-box drivers support 209 HP Print devices. Okay, now that we know how to get the data, let’s get it for everything” that is in the driver store. Instead of running the command manually for each INF file you can run the following command:
[sourcecode language=”plain”]
FOR /R C:\WINDOWS\SYSTEM32\DRIVERSTORE\FILEREPOSITORY %%i IN (*.INF) DO dism /online /get-driverinfo /driver:%%i >>c:\data\all.txt
[/sourcecode]
The all.txt file will have detailed driver information for any INF file found within the driver store. According to the information I dumped from a clean Windows 7 Enterprise 32 bit installation the Windows 7 in-box drivers support approx. 19’403 devices. I guess that should help most users to get their Windows 7 up and running.
Where is text file drivers2.txt directory ? and how i export to excel ?
Thank you, very usefull information!
The last command in your article doesn’t work for me, it gives the following error:
“%i was unexpected at this time”
If you copy pasted the code 1-1 from the blog article try rewriting the quotes e.g. ‘ “.
I have added a bunch of drivers to my windows 7 image using dism offline but some of the drivers have been replaced with a newer version. if i inject the new drivers then it appears that it’s not getting rid of the old drivers so my image is getting too big because of the growing size of the driverstore. do you know of a good way to clean out the driver store or how to replace it with the default driver store?
Thank you for this post! Most posts that I have found in the internet do not teach how to use DISM to deal with Drivers.
If someone wants to delete a driver from a working Windows copy, use pnputil. For DISM, use /Remove-Driver attribute. (Please read TechNet doc about it). Not sure if it really removes the driver or disable it.
For Jay: I recommend you use MDT (Microsoft Deployment Toolkit) if you need to replace drivers in your image so much. It have a Graphical Interface, allows Windows install automatization, allows you to update the installation during deploying using WSUS, deploy applications after the install silently, and it makes a custom install image (WIM) with the drivers you select. Every time a driver is added, removed or replaced you can update the image.
I tried to put your code — Dism /online /get-drivers /all /format:table >drivers2.txt — in a batch file, but I can’t get it to work right in Windows 7. When I double-click the batch file, it runs but the saved text file contains an Error 740 message “Elevated privileges are required.” When I right-click the batch file to Run as Administrator, the Command window flashes on my screen and quickly disappears, and the text file is no where to be found. What am I doing wrong?
I suggest you first open a command prompt as administrator and then run the script.
