ToolTip: DirCreator

Posted by Alex Verboon on Monday, November 12, 2012

Are you an Administrator tired of manually creating folder structures for new projects? Then DirCreator is just what you need. DirCreator is an enterprise-proven tool to automatically generate structured, template-based directory structures, along with groups, members and ACLs.

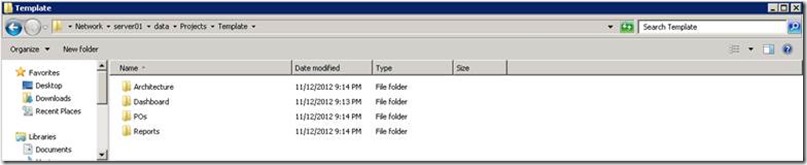

You can either create a template from scratch or create a template based on an existing folder structure. For this demonstration I first create a template folder structure on my home lab data share.

\server01\data\Projects

clip_image002

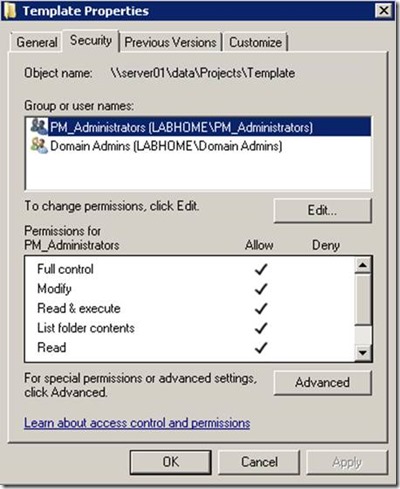

I also modify the folders permissions

clip_image004

Next I run DirCreator with the following command line:

C:\data\dircreator>DirCreator.exe ReadAcls -d \server01\data\Projects -r true - x c:\data\template.xml

This generates the template file template.xml

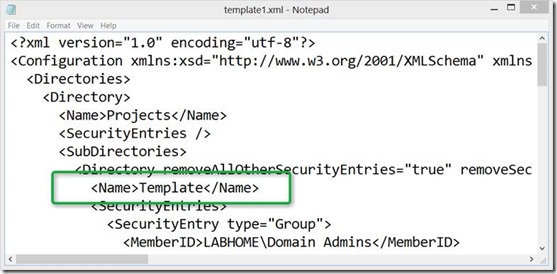

As a next step, I’ll replace the folder name “Template”

clip_image006

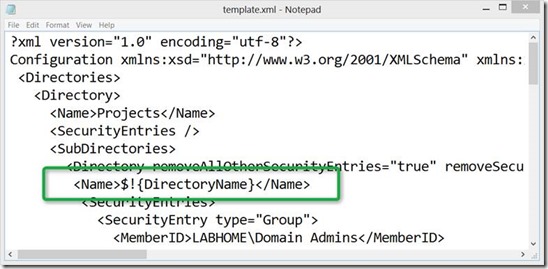

With $!{DirectoryName}

clip_image008

And then save the template.xml. To create a new Project folder called FooProject1 that contains all predefined sub folders, group members and ACL’s, I run the following command:

C:\data\dircreator>DirCreator.exe -t c:\data\template.xml -n “DirectoryName=FooProject1

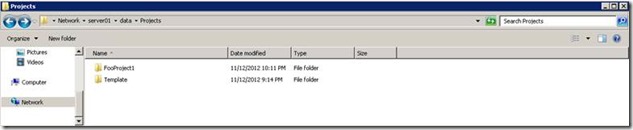

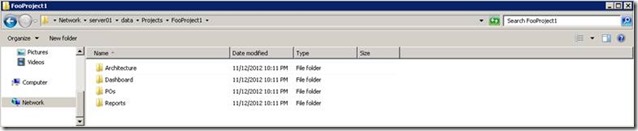

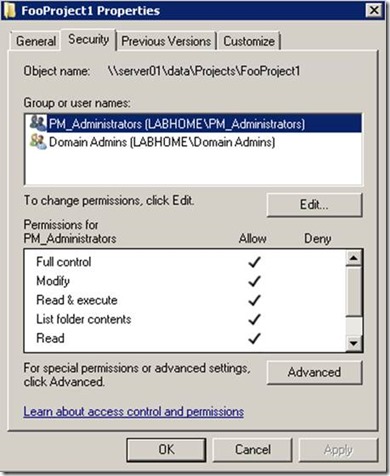

And see, a new Project folder is created, containing all predefined subfolders and folder permissions.

clip_image010

clip_image012

clip_image014

In this example I only used static AD group names, but if you have a little bit of time, you can customize DirCreator to automatically create project specific groups for you.

DirCreator can be used as a standalone command line tool or as a Windows Service where it will automatically process *.job.xml files once stored in the defined directory.

More information about DirCreator and download links can be found here
