PowerShell Desired State Configuration – My first experiences

During the past weeks I have been reading and listening about PowerShell Desired State Configuration a new feature introduced with PowerShell 4.0 which ships with Windows 8.1 and Server 2012R2 but is also available for Windows 7 SP1 and Server 2008 R2 as part of the Windows Management Framework 4.0

To keep things simple at first, I have only focused at running DSC on a local client and only used two built-in configuration resources. What i wanted to achieve was not only to get a DSC running, but also understand how things work.

The client_config.ps1 script below defines the configuration and generates the configuration MOF file. The below configuration defines a registry key and and a defined value  and a file that must exist and contain a defined content.

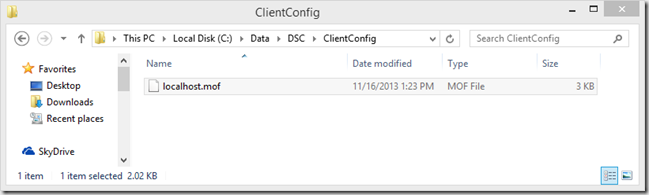

The result of running the above script is the localhost.mof file

2013-11-16_18h04_29

The content of the MOF file looks as following (Get-Content localhost.mof)

/*
@TargetNode=’localhost’
@GeneratedBy=Admin
@GenerationDate=11/16/2013 13:23:06
@GenerationHost=DEV001
*/

instance of MSFT_RegistryResource as $MSFT_RegistryResource1ref
{
ResourceID = “[Registry]FooCorpReg1”;
Key = “HKEY_LOCAL_MACHINE\\Software\\FooCorp”;
Ensure = “Present”;
SourceInfo = “C:\\Data\\DSC\\Client_config.ps1::11::5::Registry”;
ModuleName = “PSDesiredStateConfiguration”;
ValueData = {
    “DSCDemo”
};
ModuleVersion = “1.0”;
ValueName = “Name”;

};

instance of MSFT_FileDirectoryConfiguration as $MSFT_FileDirectoryConfiguration1ref
{
ResourceID = “[File]FooCorpFile1”;
Type = “File”;
Ensure = “Present”;
Contents = “Hello DSC World”;
SourceInfo = “C:\\Data\\DSC\\Client_config.ps1::20::5::File”;
DestinationPath = “c:\\data\\FooCorpFile1.txt”;
ModuleName = “PSDesiredStateConfiguration”;
ModuleVersion = “1.0”;

};

instance of OMI_ConfigurationDocument
{
Version=”1.0.0″;
Author=”Admin”;
GenerationDate=”11/16/2013 13:23:06″;
GenerationHost=”DEV001″;
};

Now that we have the configuration stored in a MOF file, let’s apply it to the local machine by running the following command.

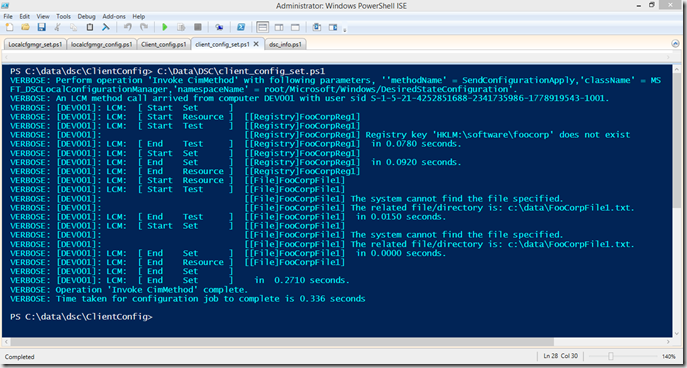

2013-11-16_18h18_01

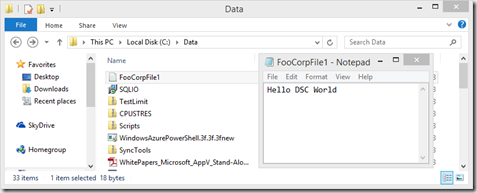

The result is that we have now the file and the content that was expected
2013-11-16_18h21_08

as well as the registry key and expected value

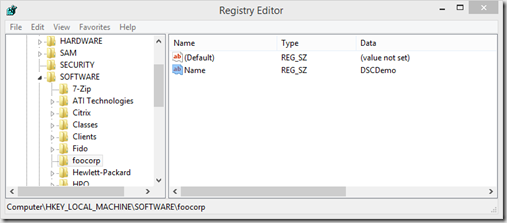

2013-11-16_18h22_36

But there is more, the configuration not only got applied but also stored on the system. I spend a bit of time figuring out where it actually stores the data. With the help of the Event log i found out that the configuration gets stored into C:\Windows\System32\Configuration\Current.MOF

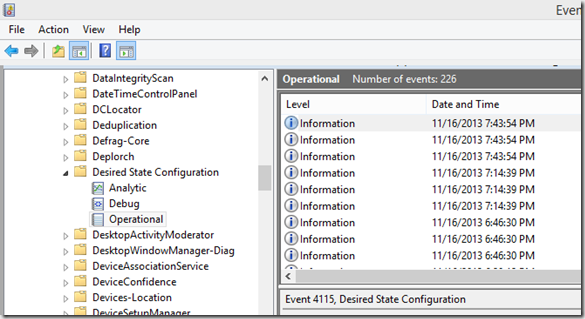

Speaking about the Event log, if you open the Event log viewer, you will find a dedicated log for Desired State Configuration events.

2013-11-16_19h48_56

To see what configuration is stored on the system, we can simply run the following command

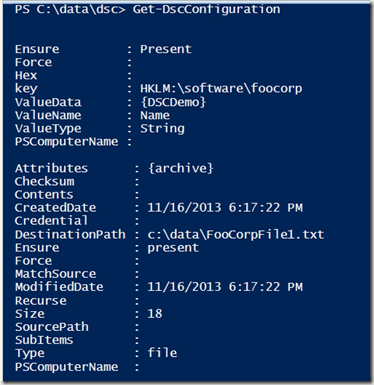

2013-11-16_19h54_40

To check whether our system is still compliant we run the following command

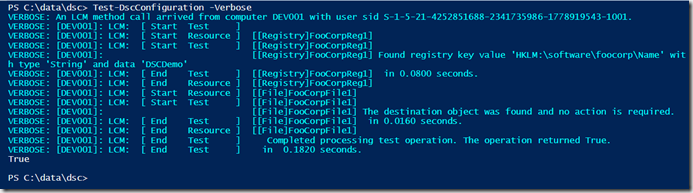

2013-11-16_19h57_31

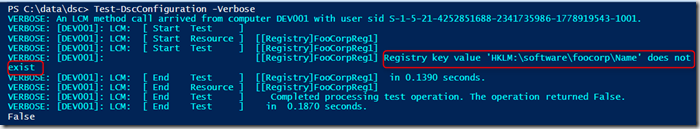

Now let’s change things on our system. We remove the registry key and change the content of the file and then run the Test-DSCConfiguration command again.

2013-11-16_20h02_21

What is interesting is that as soon as it detected that the registry setting is not compliant the test returns false, but also does not continue checking the other configuration. I assume this is by design.

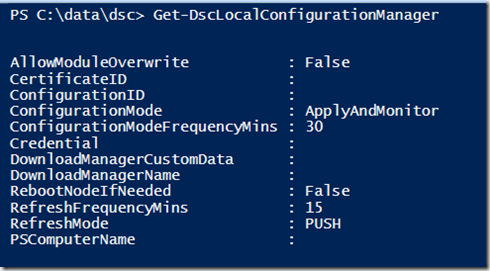

The engine that drives the Desired State Configuration is called the Local Configuration Manager. By running the following command we can see the Local Configuration Manager’s current configuration.

2013-11-16_20h18_20

It took me a bit to find this one out, but after putting together the following command

we know that there are three Configuration Modes. ApplyOnly, ApplyAndMonitor, ApplyAndAutoCorrect. On a Windows 8.1 client the default is ApplyAndMonitor. We look at how to change this in just a moment.

During my DSC discovery journey I also found out that there is a Scheduled Task for DSC.

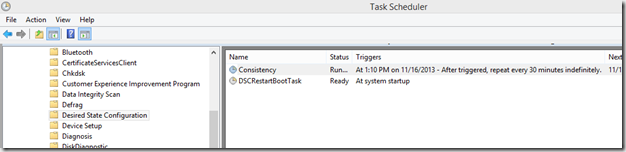

2013-11-16_20h41_30

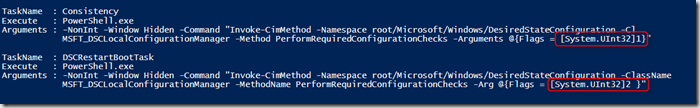

To find out what actions these tasks perform, we can use the following command.

2013-11-16_20h44_24

Both commands are nearly the same except for the Flags set for PerformRequiredConfigurationChecks . The first command has 1 specified, the scond 2. Unfortunately Microsoft hasn’t completed its documented yet, so its unclear to me what the meaning is of these flags.

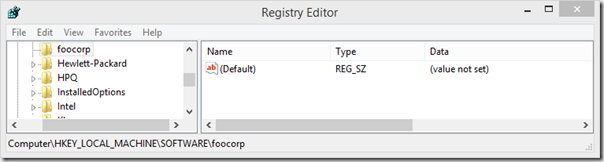

Now that we know that DSC is triggered through a Scheduled Task let’s change our registry key again and see what happens when we run the Consistency Task. Now tha the Name key and value are deleted we are definitely not compliant.

2013-11-16_20h50_05

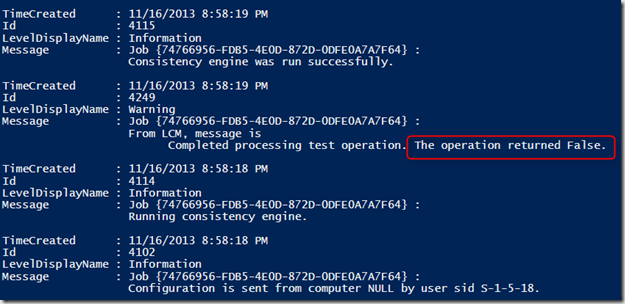

Run the Scheduled Task and and then check the event log

2013-11-16_21h02_01

So now the registry key should be back right? unfortunatelyit is not. Although DSC did detect that the system is not in its desired configuration state, no action was taken.

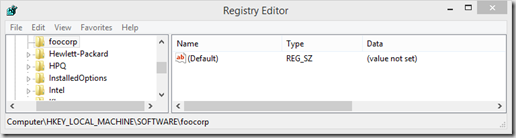

2013-11-16_21h02_55

Remember that we spoke about the Configuration Modes earlier. By default the local configuration manager is configured to ApplyAndMonitor, so if we want to change this behaviour to ApplyAndAutoCorrect we must change the configuration of the Local Configuration Manager.

Configuring the Local Configuration Manager works just like creating any other configuration  You just include the local configuration manager configuration within an existing configuration by adding a LocalConfigurationManager block inside the Node block, or create a separate script as shown below.

This time the MOF file created is called localhost.meta.mof

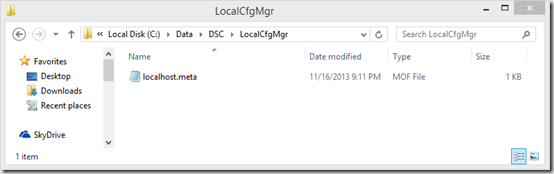

2013-11-16_21h13_27

To change the Local Configuration Manager configuration, we run the following command

Running the Get-DscLocalConfigurationManager now shows the new configured Configuration Mode.

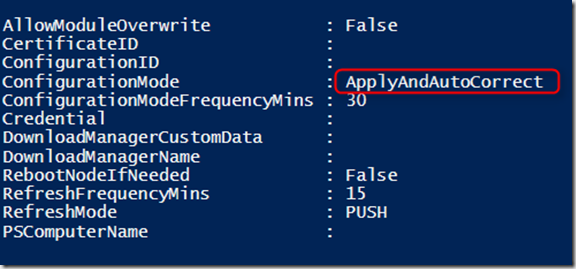

2013-11-16_21h22_06

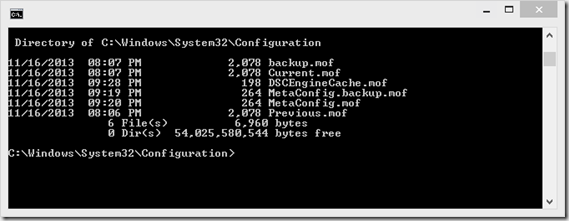

If you change the ConfigurationModeFrequencyMins value, the Scheduled Task gets automatically updated as well. Just like the configuration, the Local Configuration Manager MOF data gets stored into C:\Windows\System32|configuration into the file Metaconfig.mof
2013-11-16_21h33_37

Now let’s run the Scheduled Task again and see what happens.

2013-11-16_21h29_18

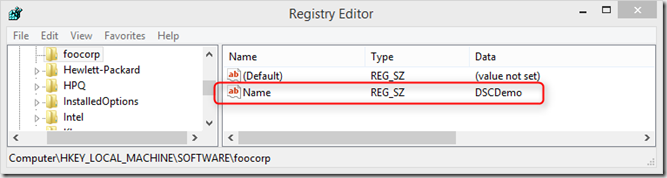

After running the Scheduled Task the missing registry got automatically re-created. Nice. That’s what i have found out about DSC so far, I hope you enjoyed the post and as always, any feedback is welcome.
