How to remove the system reserved partition

Today I worked on something where I needed a Windows 8 client that does not have a system reserved partition. To avoid a fresh installation of Windows I decided to re-use one of my Virtual Machine templates and apply the process described below.

I’m sure I’m not the first one that blogs about this but I’ve seen so many lengthy  and over-complicating descriptions (including instructions of loading the registry, use of 3rd party tools and rescue discs) that I decided to write this down anyway, even if it’s just for YOU who just stumbled over this blog post.

In case you plan to do this on a system with your or someone else’s data stored, I recommend making a backup BEFORE running the below described tasks.

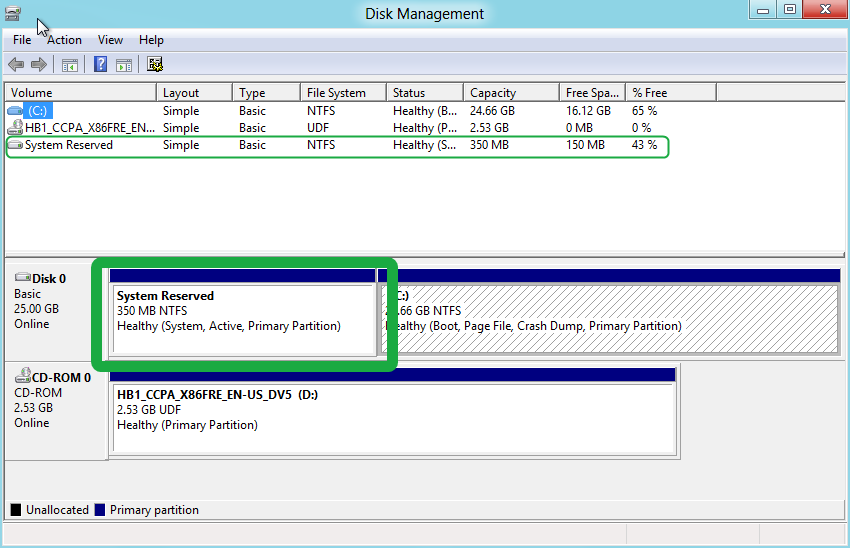

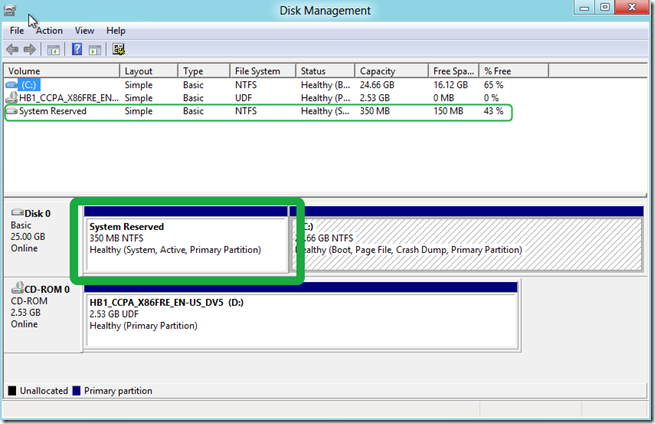

Step 1  Open the Disk Management Console and get an overview of the current disk layout.

..image

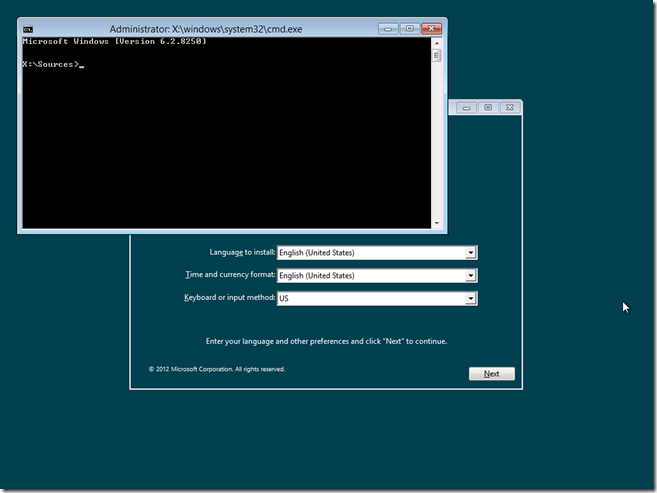

Step 2  Now boot the VM (or physical machine) from the Windows Installation media (USB/DVD). Once you see the Windows Setup menu, press SHIFT+F10 to open the command prompt.

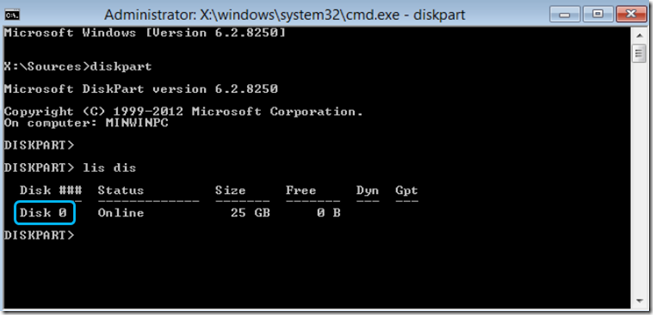

Step 3 At the command prompt type DISKPART, then type LIS DIS, you should then get something that looks like this


Step 4 Note down the Disk number and then type SEL DIS <Disk#> in this case SEL DIS 0

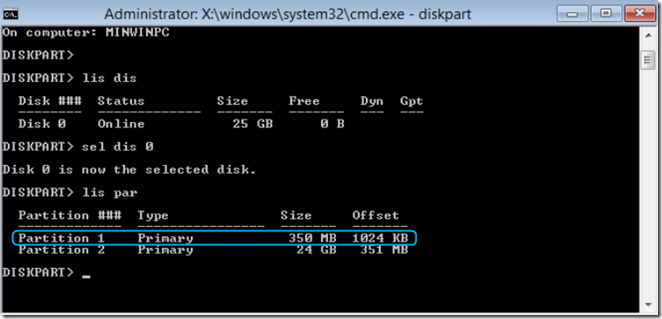

Step 5 Then type LIS PAR to get a listing of the partitions


Step 6 Note down the Partition Number and then enter SEL PAR <Partition#> in this case SEL PAR 1

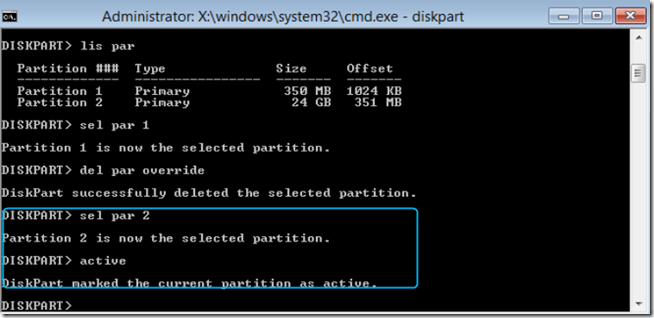

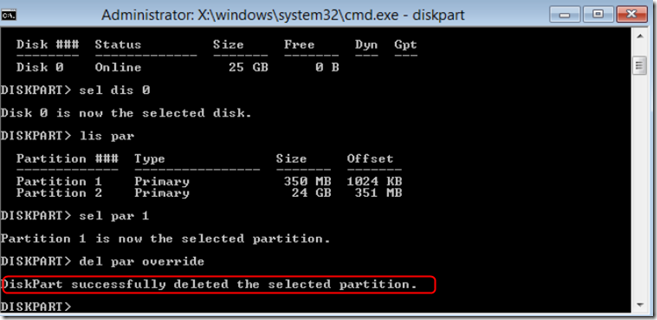

Step 7 Now type DEL PAR OVERRIDE You should get the following result.


Step 8 Type SEL PAR 2 confirm with enter and then type ACTIVE, when you get a result as shown below, type EXIT to leave Diskpart.


So far so good, no rocked science, but at this point we must rebuild the BCD because it was stored on the partition we just deleted. So let’s do that now. And for that there is a simple command called BOOTREC, so no reason to go crazy by manually fixing the BCD store etc. .

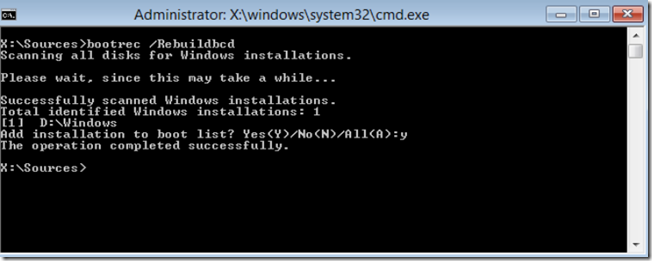

Step 9 At the command prompt type BOOTREC /REBUILDBCD

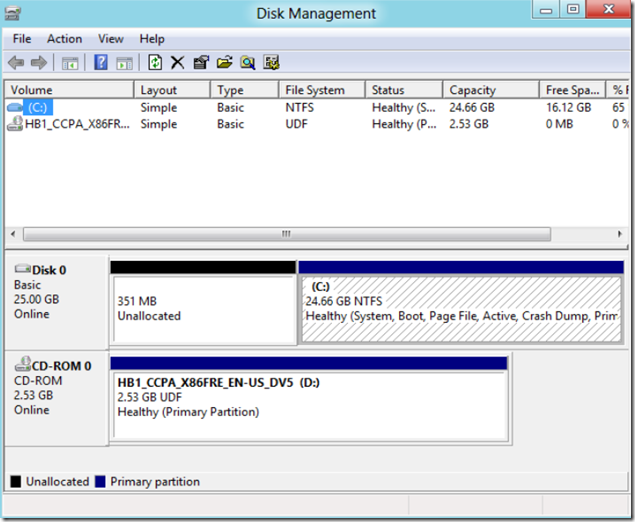

When the above command has completed successfully, you can reboot the system and if all worked fine it boots into Windows. When opening the Disk Management Console you’ll see that the system reserved partition is gone, BUT there’s now unallocated space and unfortunately it’s not possible with Windows Build in tools to bring this space back to the system partition as that one does not allow to extend it’s partition. But we’re talking about 350 MB only here anyway.


To avoid the creation of the system reserved partition during a fresh install you can follow the steps described here or if you’re using the Microsoft Deployment Toolkit add DoNotCreateExtraPartition=YES to the customsettings.ini.

2 thoughts on “How to remove the system reserved partition

  1. Dear Alex,

    I am currently learning MCSE on Windows 2012 Server. In Windows 2012, System Reserved Partition is taking a size of 350 MB.

    I read some blog that this System Reserved Partition is only required if we are using bitlocker encryption. Can be remove it if we are not using bitlocker disk encryption?

    Thanks a lot,
    Tom MCSE

  2. Hi Tom,

    Yes, if you do not use bitlocker I would not see any reason why you would want to keep that partition. On the other hand, if it is already there and since it’s only 350 mb, don’t bother to much about it :-)
